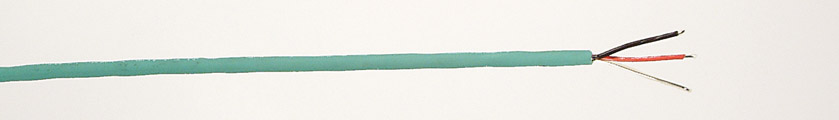

DKT-M - DIGITAL AUDIO MINIATURE FOIL SCREENED SOLID CONDUCTOR TWIN CABLE

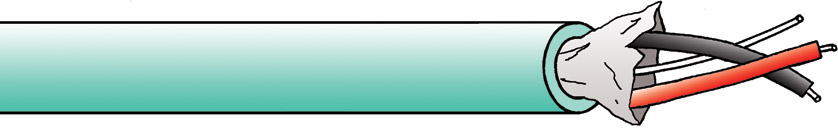

This is a miniature solid conductor cable, similar in construction to KST-M, but true 110 ohm, specifically for use with Krone and other IDC type wiring systems. Cores and drain wire are all solid conductor, 0.37mm diameter. To keep the overall diameter to a minimum, the drain is a bare solid wire. The foil screen is bonded to the outer PVC jacket, as with DFT, FST and KST-M.
Technical Specification:
| Conductor: |
1/0.37mm (0.107mm²) tinned copper wire |
| Insulation: |
Foamed polypropylene, OD 1.00mm, red, black |
| Drain: |
1/0.37mm (0.107mm²) tinned copper wire |
| Screen: |
Bondable aluminium/polyester tape |
| Jacket: |
PVC, OD 2.90mm |
| Impedance: |
110 ±10 ohms |
| Capacitance: |
41 pF/m |
| Max. conductor resistance: |
170 ohms/km |
| Weight: |
0.9kg/100m |
| Reel lengths: |
500m |
| Cut lengths: |
Available in any multiple of 1 metre |
