Pre-packed kits of Canford’s most popular cable markers, available as sets of numbers (resistor colour coded) or letters (black on white).
These markers embody a chevron shaped cut which assists in the alignment of the marker. They are made in a very flexible PVC, and are stocked in four sizes, covering cable diameters 1.5mm to 16.0mm. Markers are supplied individually cut in packs of 100, or on reels of 500 (PTV+45) or 250 (PTV+90).
Technical Specification
|
PTV+30: | Cable diameter range 1.5mm - 3.0mm |
|
PTV+45: | Cable diameter range 2.4mm - 5.0mm |
|
PTV+90: | Cable diameter range 4.0mm - 9.0mm |
|
PTV+150: | Cable diameter range 9.0mm - 16.0mm |
Kits available:
|
PTV+30 Loose, 0-9 | 100 markers of each numeral 0-9, resistor colour code, individually cut |
|
PTV+45 Loose, 0-9 | 100 markers of each numeral 0-9, resistor colour code, individually cut |
|
PTV+90 Loose, 0-9 | 100 markers of each numeral 0-9, resistor colour code, individually cut |
|
PTV+150 Loose, 0-9 | 100 markers of each numeral 0-9, resistor colour code, individually cut |
|
PTV+45 Loose, A-Z | 100 markers of each letter A-Z, black on white, individually cut |
|
PTV+90 Loose, A-Z | 100 markers of each letter A-Z, black on white, individually cut |
|

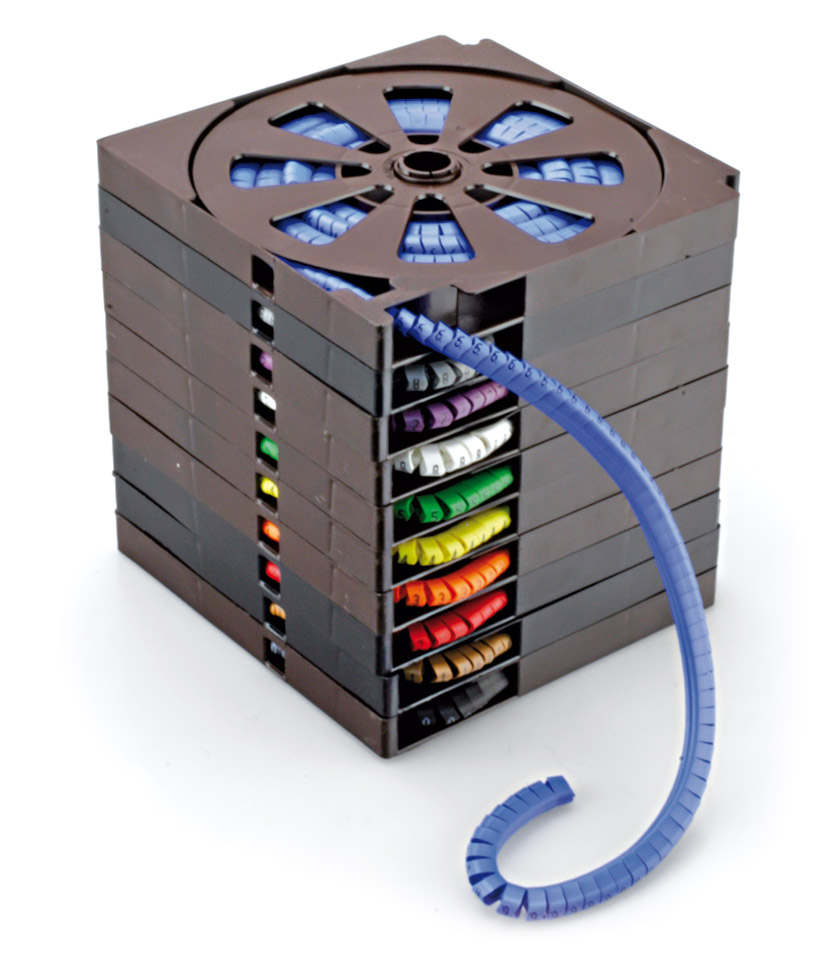

PTV+45 Reels, 0-9 | 500 markers of each numeral 0-9, resistor colour code, on reels |
|
PTV+90 Reels, 0-9 | 250 markers of each numeral 0-9, resistor colour code, on reels |
Fitting tools are also available. These are tapered guides which expand the markers to enable them to slide easily onto cables. Sometimes known as “thimble jigs”.
Ordering note:
These markers are a new version, from the same manufacturer, of the traditional PTV3, PTV5, PTV9 and PTV16 that have been in our range for many years. The sizing is identical, but the type names are different.
