Manufacturers description
PSM 200 Wireless Personal Monitor System with Mix Control, P2TRE2
Whether you're playing live or rehearsing, you need to hear yourself to be your best. That's what monitoring is all about. Yet some performers still struggle with booming floor wedge monitors and loud stage volume. Introducing the PSM200 - the personal monitoring break through that performers have been waiting for. Featuring smart, versatile components that grow with you as your needs change, the PSM 200 series is a practical alternative to floor wedges for performers who want to start out In Ear and stay there.
The P2R Hybrid Bodypack Receiver is the world's first bodypack receiver to function as a wired receiver, a wireless receiver, or both at the same time. This and other unique features, along with excellent sound quality, make the P2R an exceptional value.
The P2T Wireless TransMixer is another breakthrough design for personal monitoring. It allows the user to connect two line-level or mic–level inputs directly into the transmitter. The two signals can then be mixed independently. You can connect microphones or instruments directly to the inputs, use line outputs from a mixing console, or connect it to Shure's AuxPander. In short, no matter what the output device, you can probably plug it into the TransMixer.

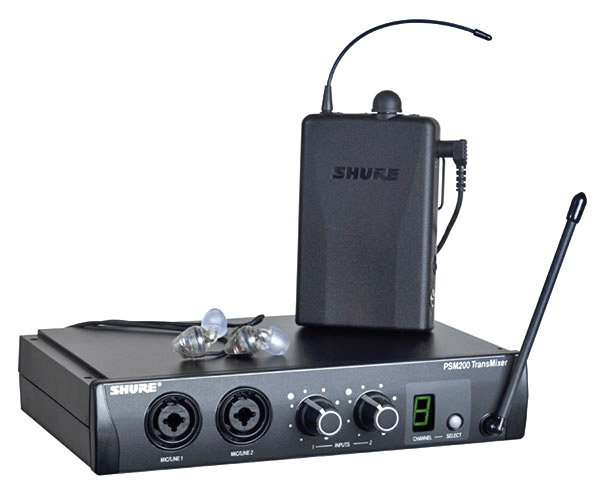

The PSM 200 model P2TRE2 wireless personal monitor system with mix control consists of the P2T Wireless Transmixer, the P2R Hybrid Bodypack Reciever, and clear SCL2 Sound Isolating Earphones.
Features
P2T Wireless TransMixer
The P2T TransMixer is breakthrough design for personal monitoring. It allows the user to connect two line-level or miclevel inputs directly into the transmitter. The two signals can then be mixed independently. You can connect microphones or instruments directly to the inputs, use line outputs from a mixing console, or connect it to Shure's AuxPander. In short, no matter what the output device, you can probably plug it into the TransMixer.
|
Key Features |
|
- Built-in audio limiter
- Front mounted antenna
- Two mic/line input channels for mix control
- 1/2 Rack space
|
|
Operating Controls |
|
- Input level control
- Frequency select
|
|
LED Indicators |
|
- Tri-color input level
- Frequency
|
|
Inputs |
|
- Two Mic/line, XLR-1/4 in. combo input channels
|
|
Outputs |
|
|
P2R Hybrid Bodypack Receiver
The P2R Receiver is the world's first bodypack receiver to function as a wired receiver, a wireless receiver, or both at the same time. This and other unique features, along with excellent sound quality, make the P2R an exceptional value.
|
Key Features |
|
- Can operate as a wired or wireless bodypack, or both simulaneously
- Frequency locator
- Built-in headphone limiter
- Integrated cable management
- High-impact plastic chassis
- 1/4" Line inpit jack with high/low gain switch
|
|
Operating Controls |
|
- Volume knob
- Frequency select
|
|
LED Indicators |
|
- Power
- RF reception
- Frequency
- Limiter
- Low Battery
|
SCL2 Sound Isolating Earphones
Single Dynamic Microdriver technology delivers full range sound and isolation from outside noise.
|
Specifications |
|
- Frequency Range: 22Hz - 17.5kHz
- Sensitivity (at 1 kHz): 105 dB SPL/mW
- Weight: 30g (1oz)
- Impedance (at 1 kHz) 16 ohms
- Output Connector: Gold-plated stereo, 3.5 mm (1/8-inch) phone plug
- Cable Length: 1.57 m (62 inches)
|
Specifications
PSM®200 System
- RF Carrier Frequency Range
- 518--865 MHz (country dependent)
- Operating Range
- 100 m (300 ft.) under optimal conditions
- Audio Frequency Response
- 30 Hz to 12 kHz (+/-3 dB); earphone dependent
- Total Harmonic Distortion (1 kHz)
- <1% typical (Ref. +/- 35 kHz deviation)
- Modulation
- FM +/- 35 kHz Deviation (Nominal)
- Signal-to-Noise Ratio
- 80 dB typical (A-weighted)
- Operating Temperature
- --7 degrees C to +49 degrees C (+20 degrees F to +120 degrees F)
P2T TransMixer
- RF Output Power
- 30 mW (+15 dBm) typical conducted (country dependent)
- Modulation Limiter
- Internal peak limiter (>10:1 hard knee compression)
- Antenna
- 1/4 Wavelength, semi-rigid, PCB Mount
- P2T Audio Input
- Connector Type: XLR/1/4-inch combo
- Configuration: electronically balanced
- Actual Impedance: 1 kilohm
- Nominal Input Level: -25 dBu @ 1/2 volume (12 o'clock)
- Maximum Input Level: -5 dBu @ 1/2 volume (12 o'clock)
- Pin Assignments:
- XLR: 2=hot; 3=cold, 1=ground
- 1/4: Tip = hot, Ring = cold, Sleeve=ground
- Phantom Power Protection? Yes: Up to 52 Vdc
- Current
- 170 mA maximum
- Dimensions
- 220 mm x 140 mm x 40 mm (8.6 in. x 5.6 in. x 1.7 in.)
- Net Weight
- 370 g (13 oz.)
- P2T Audio Outputs Passive connection parallel with input.
- Connector Type: XLR
- Configuration: electronically balanced
- Pin Assignments: 2 = hot ; 3 = cold, 1 = ground
- Phantom Power Protection? Yes: Up to 52 Vdc
- Power Requirements
- Operating voltage 12-18 Vdc
- Supplied with one of the following external power supplies:
- Model PS20: 120 VAC, 60 Hz input.
- Model PS20E, Model PS20UK: 230 VAC, 50/60 Hz input.
P2R Receiver
- RF Sensitivity
- -109 dBm typical
- Squelch Threshold
- -102 dBm typical
- Antenna
- Attached Whip
- Audio Input Connector
-
- Connector Type: 1/4-inch Mono
- Impedance: 1 megohm
- Maximum Input Level: LO = +0 dBu; HI = -10 dBu
- Frequency Response: 30 Hz to 20 kHz (+/-3 dB); earphone dependent
- Power Requirements
- 9 V alkaline battery, Duracell® type MN1604 recommended
- Battery Life
- Volume Dependent
- Wired (RF Off): 6 hours
- Wireless (RF On): 4 hours
- Audio Output Connector
- 1/8 inch (3.5 mm)
- Minimum Load Impedance
- 8 ohms
- Net Weight
- 100 g (3.52 oz.), less battery
- Overall Dimensions
- 122 mm x 73 mm x 32 mm (4.809 in. x 2.875 in. x 1.251 in.)
Description
SHURE PERSONAL MONITOR SYSTEMS - PSM200 Series
Featuring 'smart, versatile components that grow with you as your needs change', the PSM 200 series is a practical alternative to floor wedges for performers who want to 'start out In Ear and stay there'. The P2R Hybrid Bodypack Receiver functions as a wired receiver, a wireless receiver, or both at the same time. This and other unique features, make the P2R 'exceptional value'. The P2T Wireless TransMixer allows the user to connect two line-level or microphone-level inputs directly into the transmitter. The two signals can then be mixed independently. The user can connect microphones or instruments directly to the inputs, use line outputs from a mixing console, or connect it to Shure's AuxPander.
