P2T Wireless TransMixer
PSM 200 System Component

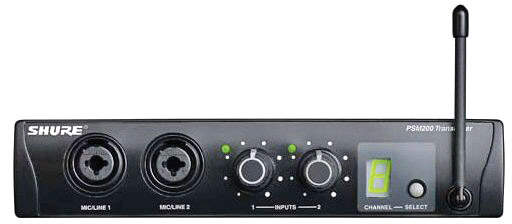

The P2T TransMixer is breakthrough design for personal monitoring. It allows the user to connect two line-level or miclevel inputs directly into the transmitter. The two signals can then be mixed independently. You can connect microphones or instruments directly to the inputs, use line outputs from a mixing console, or connect it to Shure's AuxPander. In short, no matter what the output device, you can probably plug it into the TransMixer. For use with PSM 200 monitors.
Features
P2T Wireless TransMixer
Key Features
- Built-in audio limiter
- Front mounted antenna
- Two mic/line input channels for mix control
- 1/2 Rack space
Operating Controls
- Input level control
- Frequency select
LED Indicators
- Tri-color input level
- Frequency
Inputs
- Two Mic/line, XLR-1/4 in. combo input channels
Outputs
Specifications
- RF Output Power
- 30 mW (+15 dBm) typical conducted (country dependent)
- Modulation Limiter
- Internal peak limiter (>10:1 hard knee compression)
- Antenna
- 1/4 Wavelength, semi-rigid, PCB Mount
- P2T Audio Input
- Connector Type: XLR-1/4-inch combo
- Configuration: electronically balanced
- Actual Impedance: 1 kilohm
- Nominal Input Level: -25 dBu @ 1/2 volume (12 o'clock)
- Maximum Input Level: -5 dBu @ 1/2 volume (12 o'clock)
- Pin Assignments:
-
- XLR: 2=hot; 3=cold, 1=ground
- 1/4: Tip = hot, Ring = cold, Sleeve=ground
- Phantom Power Protection? Yes: Up to 52 Vdc
- Current
- 170 mA maximum
- Dimensions
- 220 mm x 140 mm x 40 mm (8.6 in. x 5.6 in. x 1.7 in.)
- Net Weight
- 370 g (13 oz.)
- P2T Audio Outputs
- Passive connection parallel with input:
- Connector Type: XLR
- Configuration: electronically balanced
- Pin Assignments: 2 = hot ; 3 = cold, 1 = ground
- Phantom Power Protection? Yes: Up to 52 Vdc
- Power Requirements
- Operating voltage 12-18 Vdc
- Supplied with one of the following external power supplies:
- Model PS20: 120 VAC, 60 Hz input.
- Model PS20E, Model PS20UK: 230 VAC, 50/60 Hz input.
