Description
NEUTRIK SPEAKON LOUDSPEAKER CONNECTORS - Touring series
The Neutrik ‘Speakon’ loudspeaker/amplifier connectors are robust, versatile, easy to assemble, and are used extensively by amplifier and loudspeaker manufacturers as their standard connector.
The contacts are designed to operate with high currents and inductive loads, and to prevent any damage from arcing when disconnected under load. All contacts are touch-proof and the connectors meet the safety requirements of IEC60065 (“test finger” procedures).
Canford has extra-flexible loudspeaker cables designed specifically for use with the Speakon series, featuring unambiguous colour coded and numbered cores to correspond to Speakon terminal markings. These are MCS (2.5 sq.mm) and MCS-HD (4 sq.mm), each available in 2, 4 and 8 core versions.
STX “Touring” series
All metal version of Speakon for heavy duty applications, with built in sealing rings to provide weatherproof protection to IP54. This design has the latch release on the panel connector (rather than on the cable connector), but both cable and panel types will still mate with SP and SPX series. Rated 40A continuous, 50A audio with 50% duty cycle. Once piece chuck accepts cables with OD range 9-16mm.
|

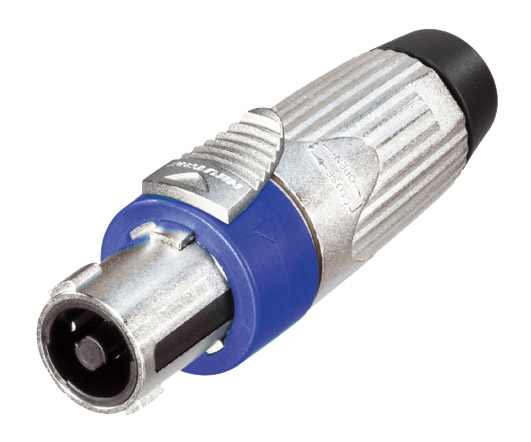

NLT4FX | Female cable connector |
|
NLT*MX | Male cable connector |
|
NLT*FP | Female panel connector |
|
NLT*MP | Male panel connector |
|
NLT*MD-V | Male panel connector, for PCB mounting (vertical) |
|
-BAG suffix | Denotes black shell version |
|
SPMRC | Moulded soft rear insulating cover (“boot”) for NLT4MP and NLT4FP (not suitable for other versions). |
|
SCNLT | Gasket for NLT4MP, can be used to make airtight a cabinet with EP profile cutout |
Pin convention (AES45 standard, provisional IEC standard)
