43-634 NEUTRIK SPEAKON LCR-4 Coding ring for Speakon SPX, yellow

each (ex. VAT) 1+ 10+ 50+ 100+
Price £ 0.33 0.30 0.28 0.25
CLEARANCE Price £ 0.12
The Clearance price is ONLY applicable to stock in our warehouse that we want to clear. If you order more than we have in stock, we will reduce your order to the quantity we have available at the Clearance price.

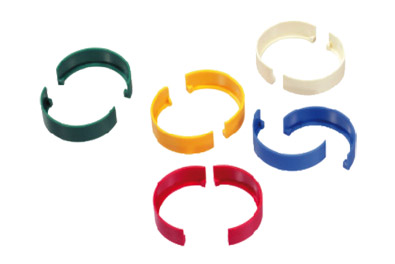

NEUTRIK SPEAKON LCR-4 Coding ring for Speakon SPX, yellow

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

NEUTRIK SPEAKON LOUDSPEAKER CONNECTORS - Cable types

The Neutrik ‘Speakon’ loudspeaker/amplifier connectors are robust, versatile, easy to assemble, and are used extensively by amplifier and loudspeaker manufacturers as their standard connector.

The contacts are designed to operate with high currents and inductive loads, and to prevent any damage from arcing when disconnected under load. All contacts are touch-proof and the connectors meet the safety requirements of IEC60065 (“test finger” procedures). Contacts are rated 30A RMS 250VAC (unless stated otherwise), with high inrush/outrush capability (300A 200mSec).

Canford has extra-flexible loudspeaker cables designed specifically for use with the Speakon series, featuring unambiguous colour coded and numbered cores to correspond to Speakon terminal markings. These are MCS (2.5 sq.mm) and MCS-HD (4 sq.mm), each available in 2, 4 and 8 core versions.

SP and SPX series cable connectors

Cable connectors have a very robust plastic shell, with traditional Neutrik chuck-type cable clamp and twistlock, with latch release or locking ring. They use slot/pozi combination screws, so specialist tools are not required for field installation (older versions used hex head screws, suitable key 43-048, replacement hex screws 43-049). Contacts can also be soldered. Maximum wire size 4mm sq. stranded, 6mm sq. solid (except NL4FX, see below). Silver plated contacts. All cable connectors are “female” pattern.

NL2FCMates with 2-pole and 4-pole (contacts 1+/1-) panel connectors. Locking ring, 30A rating, cable OD range 6-10mm.
NL4FCMates with 4-pole panel connectors. Latch release, 30A rating, cable OD range 5-15mm.
BSL-WRMoistureproof gland (IP54) for NL4FC
NL4FXMates with 4-pole panel connectors. Latch release, 50A rating, cable OD range 6-14mm. One-piece strain relief design, larger latch release, maximum wire size 6mm sq. stranded.
NL4FRXAs NL4FX but right-angled.
NLRRStrain relief reduction ring for NL4FX for cables 5mm-8mm diameter
LRXConverts NL4FX to right-angle version without re-termination.
LCRColour coded rings for NL4FX and NL4FRX.
NL8FCMates with 8-pole panel connectors. Latch release, 30A rating, cable OD range 8-20mm.

SP and SPX series in-line couplers

Lockable couplers for joining cables. Use NL4MMX for 2-pole and 4-pole types, NL8MM for 8-pole types.

Pin convention (AES45 standard, provisional IEC standard)
