44-511 AMPHENOL EP5-11 5 pin female cable

each (ex. VAT) 1+ 10+
Price £ 16.71 16.21
AMPHENOL EP5-11 5 pin female cable

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

Product resources

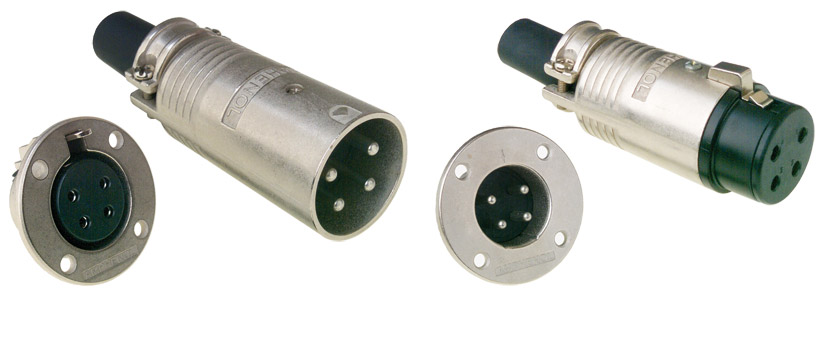

AMPHENOL EP AND AP SERIES CONNECTORS

EP series

Professional series connectors with 4, 5, 6 and 8 pins. Latchlock coupling rated 200 volts, 20A (4 and 6-pin), 15A (other sizes). EP-13 and EP-14 are panel mounting with circular flange. Panel cutout 33.5mm (fixing centres as Neutrik “Speakon” NL4MPR/NL8MPR connectors - see “Technical Data” at back of catalogue). EP-11 and EP-12 cable types accept cables up to 16mm diameter.

AP series

Rugged plastic connectors, totally mateable with EP series. Cable connectors feature one piece latch and contact insert assembly. An enlarged cable entry and internal grubscrew cable clamping system enables easy assembly. There are no loose parts. Panel connectors are sealed, and use same panel cutout and mounting hole centres as the EP series though having rectangular flanges. The moulded plastic strain relief accepts up to 11.0mm diameter, but can be trimmed to take cables up to 17.0mm (the maximum clamp acceptance). Available in 5 pin versions.

Manufactured by Amphenol Australia (formerly Alcatel Australia and ITT Cannon).
