41-124 NEUTRIK XLR NC3MD-LX-HA Male panel, crimp

each (ex. VAT) 1+ 10+ 50+ 100+
Price £ 2.90 2.62 2.44 2.15

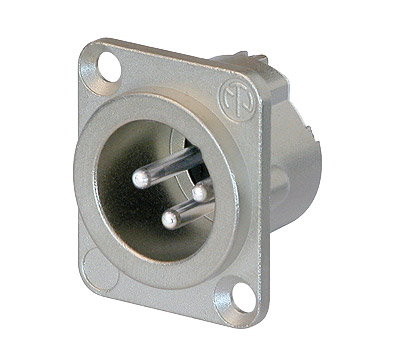

NEUTRIK XLR NC3MD-LX-HA Male panel, crimp

Description

NEUTRIK XLR PANEL CONNECTORS - D-LX-HA series - Crimp

A version of the D-LX series with crimp contacts instead of the usual solder types. The crimp termination is with the standard 'B-crimp' tool (IEC standard IEC 60352-2). The contacts are fitted onto the cable, and then inserted into the connector housing. They can be removed if necessary by rotating them through 90 degrees. Spare crimp contacts are available in packs of 50.

Whilst standard crimp tools can be used, Neutrik type HX-R-BNC together with die set DIE-R-HA-1 are suitable.
