43-498 NEUTRIK NC3MAMH-PH Phoenix connector, male pnl, XLR male PCB footprint

each (ex. VAT) 1+ 10+ 50+ 100+
Price £ 4.28 3.87 3.61 3.18

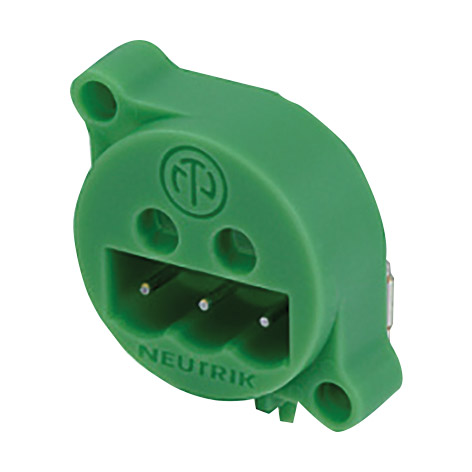

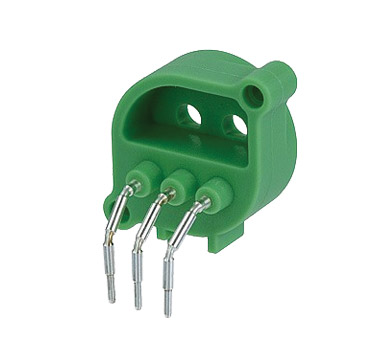

NEUTRIK NC3MAMH-PH Phoenix connector, male pnl, XLR male PCB footprint
NEUTRIK NC3MAMH-PH Phoenix connector, male pnl, XLR male PCB footprintNEUTRIK NC3MAMH-PH Phoenix connector, male pnl, XLR male PCB footprint

Description

NEUTRIK PHOENIX-STYLE PANEL CONNECTORS - A series

These are 3-pin male-contact PCB-mounting connectors in a Neutrik A series housing, which mate with the Phoenix 3-pin screw terminal block connector. They have the same PCB footprint as the Neutrik A series XLR, allowing them to be used on PCBs laid out for XLR types.

NC3MAFH-PH has a PCB footprint that corresponds to XLR NC3FAH. NC3MAMH has a PCB footprint that corresponds to XLR NC3MAH.

Suitable mating Phoenix connector is stock code 43-495.
