43-279 NEUTRIK NJ6FD-V JACK SOCKET

each (ex. VAT) 1+ 10+ 50+ 100+
Price £ 0.86 0.78 0.72 0.64
NEUTRIK NJ6FD-V JACK SOCKET

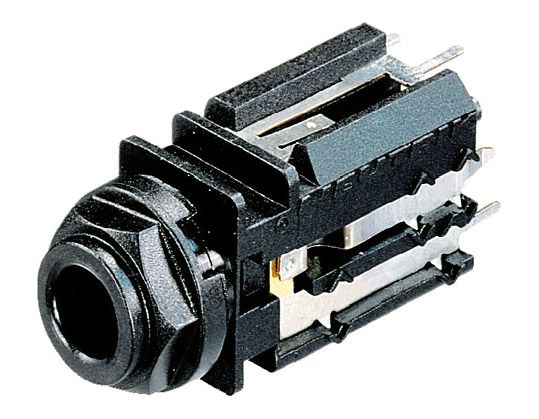

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

NEUTRIK JACK SOCKETS - NJ series - Panel type - A-gauge

6.35mm PC mounting jack sockets, available in four versions. Separation of the mechanical latch and electrical contacts means that a high retention force can be achieved togeter with low insertion pressure. It also means that the pressure on the electrical contacts is reduced, so that they can be hard-gold plated. They contact and latch with both mono and A-gauge stereo jacks. They are not suitable for use with B-gauge jacks.

They have PCB contacts on the rear face, for use with a vertical PCB (at right angles to the axis of the connector), and have both a fixing stud and a screw recess. The cap snaps into place, for rapid panel fixing (1.2mm-1.5mm thickness). Mounting hole diameter 12.0mm.

Versions available:

NJ2FD-V 2 pole, unswitched NJ3FD-V 3 pole, unswitched NJ5FD-V 3 pole, tip and ring contacts switched (“normalled”) NJ6FD-V 3 pole, all contacts switched (“normalled”)
