43-287 NEUTRIK NJ6TB-V JACK SOCKET

each (ex. VAT) 1+ 10+ 50+ 100+
Price £ 1.62 1.47 1.36 1.20

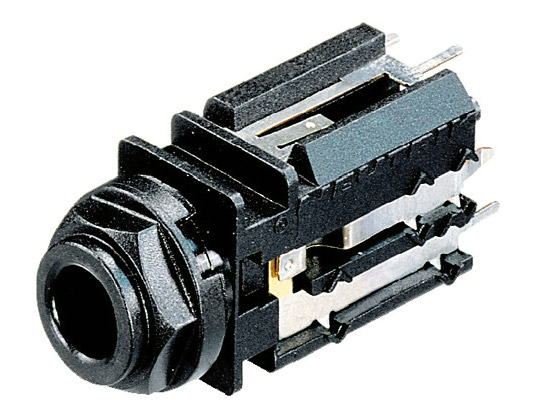

NEUTRIK NJ6TB-V JACK SOCKET

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

NEUTRIK JACK SOCKETS - NJ series - Panel type - B-gauge

These 6.35mm PC-mounting jack sockets are available in two versions. Separation of the mechanical latch and electrical contacts means that a high retention force can be achieved together with low insertion pressure. It also means that the pressure on the electrical contacts is reduced, so that they can be hard-gold plated. They contact and latch with B-gauge jacks. They are not suitable for use with A-gauge jacks.

They have PCB contacts on the rear face, for use with a vertical PCB (at right angles to the axis of the connector), and have both a fixing stud and a screw recess. The cap snaps into place, for rapid panel fixing (1.2mm-1.5mm thickness). Mounting-hole diameter 12.0mm.

Versions available:

NJ5TB-V 3 pole, tip and ring contacts switched ('normalled')
NJ6TB-V 3 pole, all contacts switched ('normalled')
