44-190 IKON DADO-90P Wall box HDD15 right-angle adapter

each (ex. VAT) 1+ 5+ 10+
Price £ 31.25 29.06 27.19

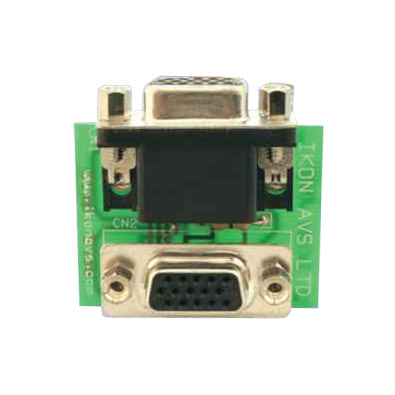

IKON DADO-90P Wall box HDD15 right-angle adapter

Description

IKON FLOOR OR WALLBOX HDD15 ADAPTERS

The Ikon HDD15 floor/wallbox and panel adapters enable provision of HDD15 female outlets where rear clearance is limited. The DADO-90P is an adapter with an HDD15 female connector mounted at right angles at the rear, and requiring only 99mm depth behind the panel. The DADO-ST provides screw terminal connections for all pins, and requires 35mm depth behind the panel.

All types share the same mounting profile, with threaded mounting posts at 25mm centres (as D-sub 9-way), 3.0mm panel holes required.
