Description
MATRIX MODULAR RJ45 CONNECTOR PLATES
A range of faceplates and snap-in modules providing Cat5E and Cat6 RJ45 outlets. Connector modules are 50mm x 25mm. Blank modules are 50mm x 25mm or 50mm x 12.5mm, the latter enabling a single module to be located centrally in a faceplate. Faceplates are available in 1-gang and 2-gang sizes, with 50mm x 50mm and 50mm x 100mm apertures respectively. They have lightly radiused square corners, are available in both flat and bevelled profiles, and are supplied complete with mounting screws. All components in the series are white.
Cat5E modules have a Krone-style IDC termination, colour coded to both T568A and T568B, plus cable tie loop, removable outlet identification strip and shutter.

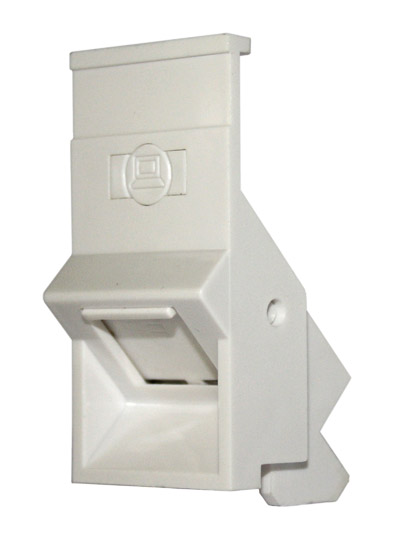

Cat6 connectors are ‘keystone’ profile, which are paired with a mounting plate according to requirements (order separately as required). The connectors have horizontal IDC termination (accepts 22-26AWG solid conductor cable) and a termination cap to prevent wire disconnection. The termination block is colour-coded to both T568A and T568B, and accepts both 110 (preferred) and Krone style tooling. The mounting plates are shuttered, and are available with flat or angled front-faces, the latter assists with and adherence to cable bend-radius requirements and in preventing patchcord snagging. The mounting plates will also accept ‘keystone’ profile connectors from other manufacturers.
Suitable surface back boxes are available - see ‘Plastic surface boxes’.
