49-566 FLOOR MOUNT CONNECTOR PLATE PB XLR 3 pin female

each (ex. VAT) 1+
Price £ 39.45

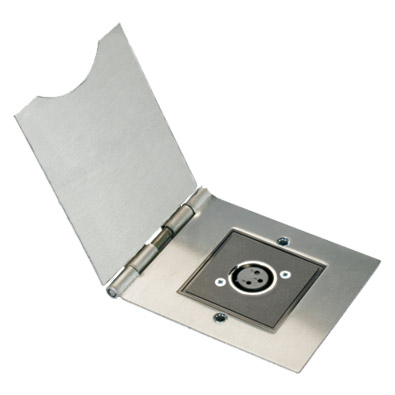

FLOOR MOUNT CONNECTOR PLATE PB XLR 3 pin female

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

FLOOR MOUNT CONNECTOR PLATES

Stainless steel and polished brass hinged flap plates, with sprung hinged-flap and sealing ring. Mounting holes to fit standard BS electrical flush boxes BS1363 or BS4662.

Available fitted with a non-latching XLR 3-pin female connector. They are also stocked punched (without connector) to take Neutrik D-series or Canford ‘Universal” series connectors, enabling a wide variety of other connector types to be floor mounted. Note that the design does not permit use of latching type connectors.
Dimensions: 103mm x 85mm. Mounting centres 60.3mm. Depth behind panel for XLR type is 31mm.

Optional accessories: A suitable steel flush box (with 20mm conduit knockouts) is stocked: 49-578
