38-785 CANFORD CABLE Camera mic input, straight jack plug, 350mm

each (ex. VAT) 1+ 10+
Price £ 8.16 7.92
CANFORD CABLE Camera mic input, straight jack plug, 350mm

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

MICROPHONE CABLES, FOR CAMERAS

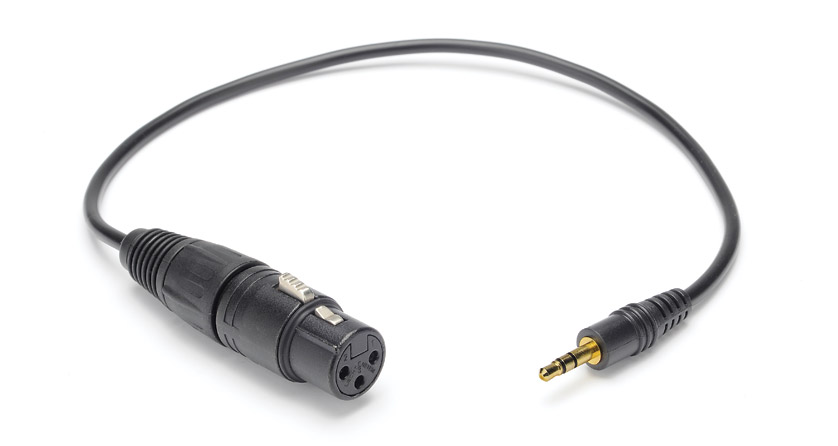

These pre-wired cables are for use with most camera microphone inputs. They have a black XLR 3-pin female for the microphone connection and a 3.5mm 3-pole jack plug, straight or right-angle, for the camera connection.

Tip and ring on the jack plug (left and right channels) are wired to pin 2 (signal) on the XLR. Sleeve on the jack plug (ground) is wired to pins 3 and 1 on the XLR.

The cable length is defined as the length of visible cable, measured from the end of the connector strain reliefs.
