Description
AC MAINS POWER LEADS - Miscellaneous
A range of 3 pole mains cables with a variety of connectors and cable lengths. All UK types use 3 core 1.00mm² (10amp) cable, with black PVC jacket. All connectors (except Neutrik XLR-LNE) are factory moulded onto the cables. ‘IEC’ connectors are 10 amp type (without keyway) and conform to CEE22 and IEC320 (EN60320). ‘C5’ connectors are 3-pin “cloverleaf” format, often used as input connectors for DC PSUs. ‘C7’ connectors are non-keyed figure-of-eight types. ‘UK’ plugs are 3 pin 13 amp type (solid pins), fitted with 5 amp fuse, and conform to BS1363A and BS4491. ‘Schuko’ connector is to CEE7 V11, (with earth contacts) and is approved for use in Germany, Austria, Netherlands, Belgium, Norway, Sweden, Finland, Denmark and France.
|
Stock Code | Type Ref | Connector 1 | Connector 2 | Length |
|---|
|
42-169 | UK-LNE-2.5 | UK | XLR-LNE-FC | 2.5m |
|

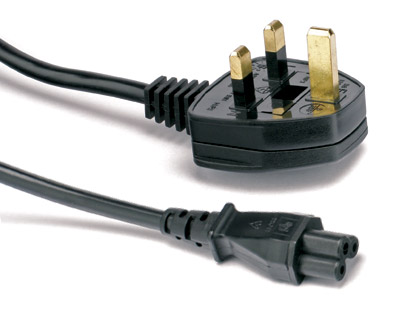

42-172 | UK-C5-2 | UK | C5 (“cloverleaf”) | 2m |
|
42-160 | UK-C7-3 | UK | C7 (figure of 8, non-keyed) | 3m |
|
42-171 | SCHUKO-IEC | SCHUKO | IEC female | 2.5m |
Note: ‘IEC’ connectors are also commonly known as ‘CEE’ connectors in some countries.
