30-938 MOGAMI 3172 CABLE

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 7.10 5.68 5.54 5.40 5.18
MOGAMI 3172 CABLE
MOGAMI 3172 CABLEMOGAMI 3172 CABLE

Description

MOGAMI VALVE MICROPHONE CABLE

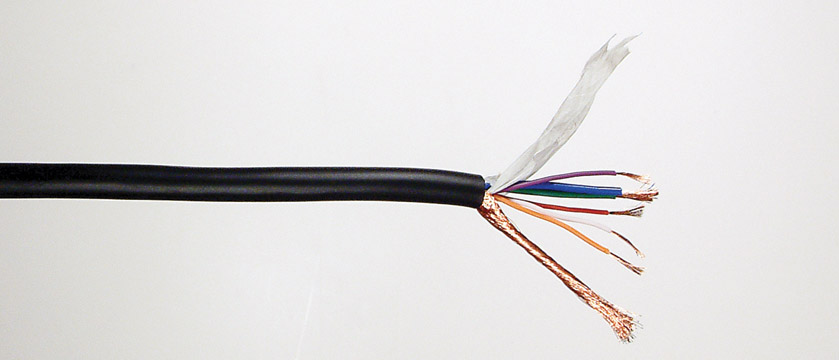

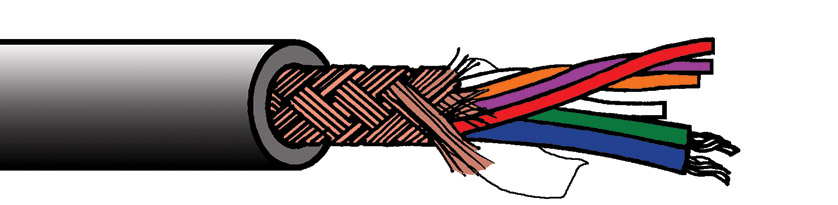

Mogami 3172 is a 6-conductor cable specifically for use with valve microphones, and other types requiring additional control cores. Two 0.15mm² signal conductors, two 0.4mm² heater circuit conductors and two 0.094mm² bias conductors plus double helical (“Reussen”) screen. All other Mogami cables are available to special order.

Technical Specification:

Conductors:
Mic:2 × 30/0.08mm (0.15mm²) oxygen-free copper, insulated orange, white
Heater:2 × 80/0.8mm (0.40mm²) copper, insulated green, blue
Bias:2 × 75/0.04mm (0.094mm²) tinned copper, insulated red, purple
Screen 1:112/0.10mm, helically wound, left hand lay
Screen 2:133/0.10mm, helically wound, right hand lay
Overall jacket:Soft PVC, 6.5mm OD, black
Weight:6.3kg/100m
Reel length:100m
Cut lengths:Available in any multiple of 1 metre
