60-1696A BELDEN 1696A CABLE Black

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 3.73 2.98 2.87 2.76 2.54
CLEARANCE Price £ 1.20
The Clearance price is ONLY applicable to stock in our warehouse that we want to clear. If you order more than we have in stock, we will reduce your order to the quantity we have available at the Clearance price.

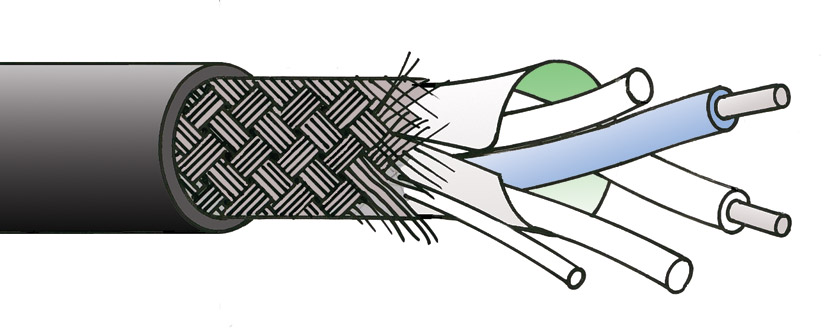

BELDEN 1696A CABLE Black

Description

BELDEN 1696A - DIGITAL AUDIO DOUBLE SCREENED STRANDED CONDUCTOR TWIN CABLE

Foil and braid screened cable for AES/EBU digital audio.

Technical Specification:

Conductors:7/0.255mm (7/30AWG) (0.35mm sq.) (22AWG) tinned copper
Insulation:Datalene ® (foamed high density polyethylene), white, blue
Construction:Two cores twisted together with 7/0.20 (7/32AWG) plain copper drain wire
Screen 1:Aluminium/polyester foil
Screen 2:Tinned copper braid, 90% optical coverage
Jacket:PVC, 5.94mm OD, black
Impedance:110 ohms
Capacitance:43pF/m core to core, 85pF/m core to core+screen
Weight:4.61kg/100m
Reel length:305m
Cut lengths:Available in any multiple of 1 metre
