60-1800B BELDEN 1800B CABLE Violet

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 1.10 0.88 0.85 0.81 0.75
BELDEN 1800B CABLE Violet

Description

BELDEN 1800B - DIGITAL AUDIO FOIL SCREENED STRANDED CONDUCTOR TWIN CABLE

Foil screened cable for AES/EBU digital audio, with Beldfoil ® (the foil bonded to the jacket) for easy stripping.

Technical Specification:

Conductors:7/0.20mm (7/32AWG) (0.22mm sq.) (24AWG) tinned copper
Insulation:Datalene ® (foamed high density polyethylene), 1.72mm OD, red, black

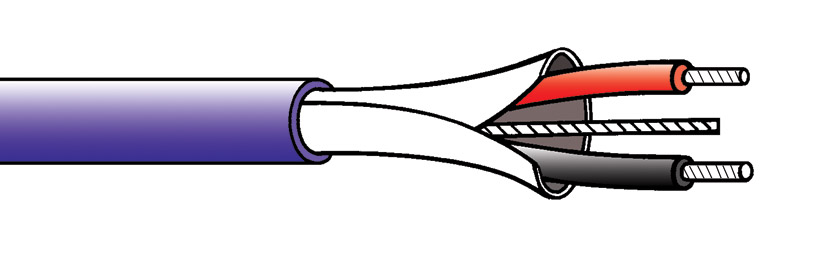

Construction:Two cores twisted together with 7/0.2mm tinned copper drain wire
Screen:Beldfoil ® (bonded to jacket)
Jacket:PVC, 4.49mm OD, violet (grey available to special order)
Impedance:110 ohms
Capacitance:39pF/m core to core, 85pF/m core to core+screen
Weight:2.72kg/100m
Reel length:305m
Cut lengths:Available in any multiple of 1 metre.
