Canford

www.canford.co.uk

60-1800F BELDEN 1800F CABLE Black

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 4.83 3.86 3.72 3.57 3.28
Available only while stocks last. Prices may have been reduced to clear stock.

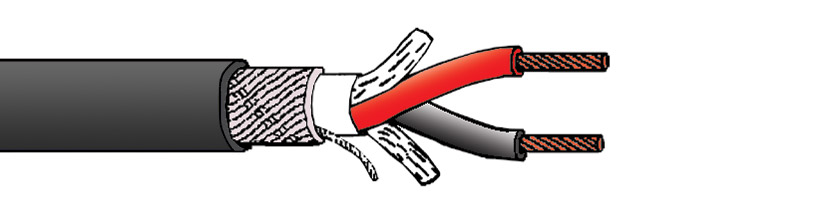

BELDEN 1800F CABLE Black

Description

BELDEN 1800F - DIGITAL AUDIO BRAID SCREENED STRANDED CONDUCTOR TWIN CABLE

Extremely flexible cable for AES/EBU digital audio with Belden FrenchBraid ® screening.

Technical Specification:

Conductors:42/0.079mm (42/40AWG) (0.205mm sq.) (24AWG) plain copper
Insulation:Datalene ® (foamed high density polyethylene), 1.47mm OD, red, black
Construction:Two cores twisted together with plain copper drain wire
Screen:FrenchBraid ® (tinned copper braid), 95% optical coverage
Jacket:PVC, 5.36mm OD, black (violet, red, blue, green, yellow, and grey available to special order)
Impedance:110 ohms
Capacitance:39pF/m core to core, 85pF/m core to core+screen
Weight:3.57kg/100m
Reel length:305m
Cut lengths:Available in any multiple of 1 metre.
