60-8451 BELDEN 8451 CABLE Black

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 1.37 1.10 1.05 1.01 0.93
BELDEN 8451 CABLE Black

Description

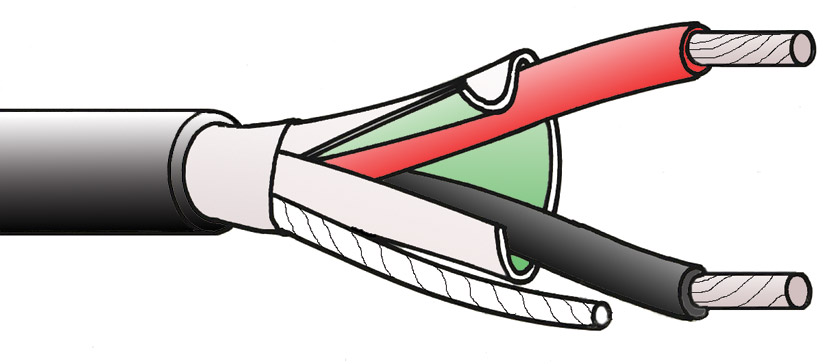

BELDEN 8451 - FOIL SCREENED STRANDED CONDUCTOR TWIN CABLE

Foil screened installation cable, with the foil not bonded to the outer jacket so that when stripping off the jacket, the foil can be left on the pair.

Technical Specifications:

Conductors:7/0.20mm (7/32AWG) (0.22 sq.mm) (24AWG) tinned copper
Insulation:Polyolefin, red, black
Construction:Two cores twisted together with 7/0.2mm tinned copper drain wire, lay length 44mm
Screen:Aluminium/polyester/aluminium foil tape
Jacket:PVC, black, O.D.3.51mm
Capacitance:111pF/m core to core, 219pF/m core to core + screen
Weight:2.02kg/100m
Reel length:305 metres
Cut lengths:Available in any multiple of 1 metre
