Canford

www.canford.co.uk

60-9180 BELDEN 9180 CABLE Violet

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 1.43 1.14 1.10 1.06 0.97
BELDEN 9180 CABLE Violet

Description

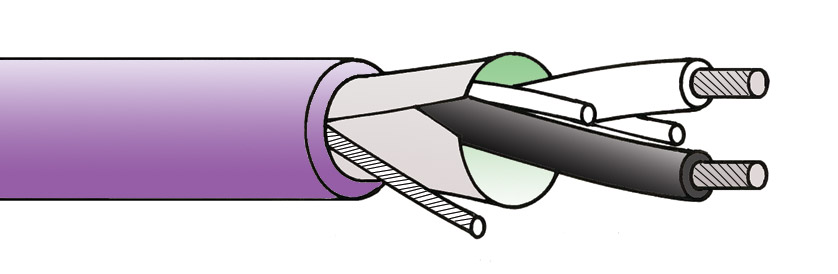

BELDEN 9180 - DIGITAL AUDIO FOIL SCREENED STRANDED CONDUCTOR TWIN CABLE Miniature

Foil-screened installation cable for AES/EBU digital audio, with the foil not bonded to the outer jacket so that when stripping off the jacket, the foil can be left on the pair.

Technical Specifications:

Conductors:7/0.16mm (7/34AWG) (0.22 sq.mm) tinned copper (26AWG)
Insulation:'Datalene' (foamed high density polyethylene), O.D. 1.24mm, red, black
Construction:Two cores twisted together with 7/0.2mm tinned copper drain wire
Screen:Aluminium/polyester/alumminium tape
Jacket:PVC, violet, O.D.3.66mm
Impedance:110 ohms
Capacitance:42.6pF/m
Weight:1.47kg/100m
Reel length:305 metres
Cut lengths:Available in any multiple of 1 metre
