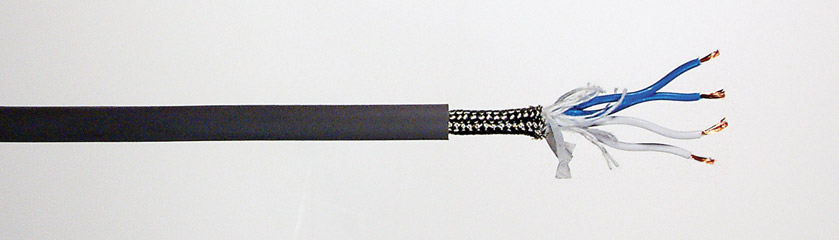

CANARE L-4E STARQUAD MICROPHONE CABLE
The star-quad design for microphone cables, where 4 conductors are used in pairs, with a short lay length, to cancel out the effects of external electromagnetic noise, is well known in demanding applications such as TV, video and theatre where thyristor lighting control systems are in use. The cables are, of course, also suitable for line level signals. The cables are extremely flexible, using fine stranded copper cores and soft PVC jacketing, and handling noise is minimised by the use of cotton fillers. An irradiated polyethylene core insulation provides a low capacitance dielectric, and its high temperature resistance minimises run-back during soldering.
L-4E5C version is a narrow profile version, very popular as a boom cable.
Multi starquad cables (L-4E3-P series) are available to special order, supplied as full reels of 100 metres.
Technical Specification:
|
Conductors: | 40/0.08mm (0.2mm. sq.) (L-4E6S), 30/0.08mm (0.15mm. sq.) (L-4E5C) |
|
Insulation: | Irradiated polyethylene, two blue, two white |
|
Lay up: | Four wires twisted together with lay length 20mm (L-4E6S), 18mm (L-4E5C) |
|
Screen: | Tinned copper braid, 95% coverage |
|
Overall jacket: | Soft PVC, 6.0mm OD (L-4E6S), 4.8mm OD (L-4E5C) |
|
Capacitance: | 160pF/m |
|
Weight: | 5.5kg/100m (L-4E6S), 4.0kg/100m (L-4E5C) |
|
Reel length: | 200 metres |
|
Cut lengths: | Available in any multiple of 1 metre |
|
USAGE NOTE: | White + White for A leg |
|
| Blue + Blue for B leg |
