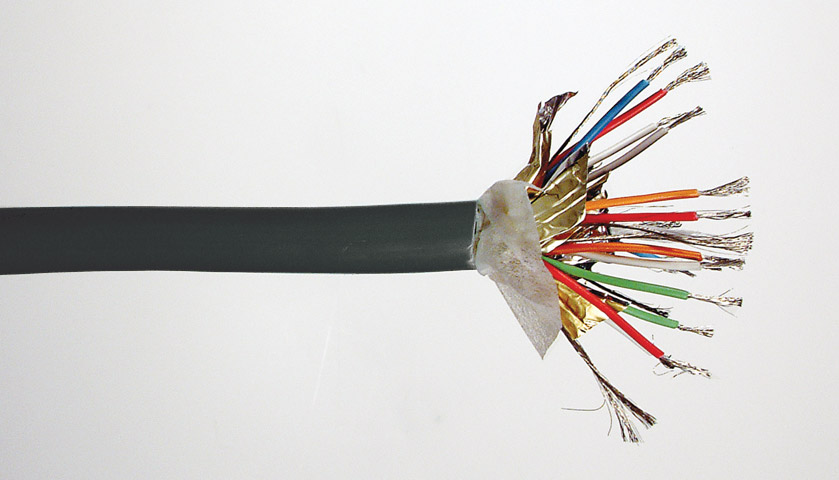

FSM-LFH SERIES - FOIL SCREENED STRANDED CONDUCTOR MULTIPAIR CABLE - Low fire hazard
This new 2010 version of the classic Canford FSM series of cables is designed to be suitable for both digital and analogue audio signals, the 'universal' solution for both installed and deployable applications. Wire insulation is polypropylene, which shrinks back minimally during soldering (considerably less than PVC or polyethylene). An impedance of 100 ohms has been proven to be suitable for AES/EBU digital audio signals as well as analogue microphone and line level signals.
Wiring specifications for many public buildings now call for LFH cables to be used in certain areas, notably in corridors, risers etc. Under combustion circumstances, LFH cables have a significantly reduced smoke emission, and the gaseous products contain no toxic halogens.
FSM-LFH series cables are technically identical to standard FSM series, apart from the use of LFH materials.
Technical Specification:
|
Conductors: | 30/0.1mm tinned copper wire |
|
Insulation: | Foamed polypropylene, 1.50mm overall diamater, according to IEC colour code |
|

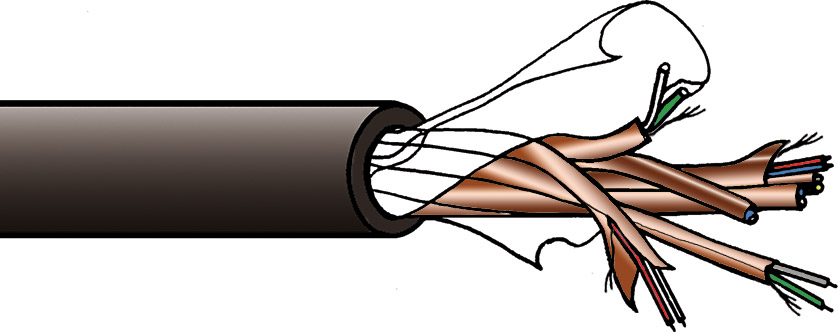

Lay-up: | Two insulated conductors twisted together, laid up with 30/0.1mm tinned copper drain wire, overall aluminium/polyester "S-profile" foil tape screen |
|
Overall jacket: | LFH material, black, printed with metre markings |
|
Impedance: | 100 ohms (+/- 10 ohms) |
|
Pair capacitance: | 41pF/m core to core, 102pF/m core + core to screen |
|
Overall diameter: | FSM2 7.1mm, FSM4 9.0mm, FSM8 11.0mm, FSM12 14.1mm, FSM16 17.3mm, FSM24 19.6mm, FSM32 21.0mm |
|
Weight (kg/100 metres): | FSM2 4.5kg, FSM4 7.2kg, FSM8 11.8kg, FSM12 17.1kg, FSM16 23.1kg, FSM24 33.9kg, FSM32 41.8kg |
|
Reel lengths: | 500 metres |
|
Cut lengths: | Available in any multiple of 1 metre |
