35-5064 CANFORD CABLE DRUM CD4823

each (ex. VAT) 1+ 10+
Price £ 870.00 844.00

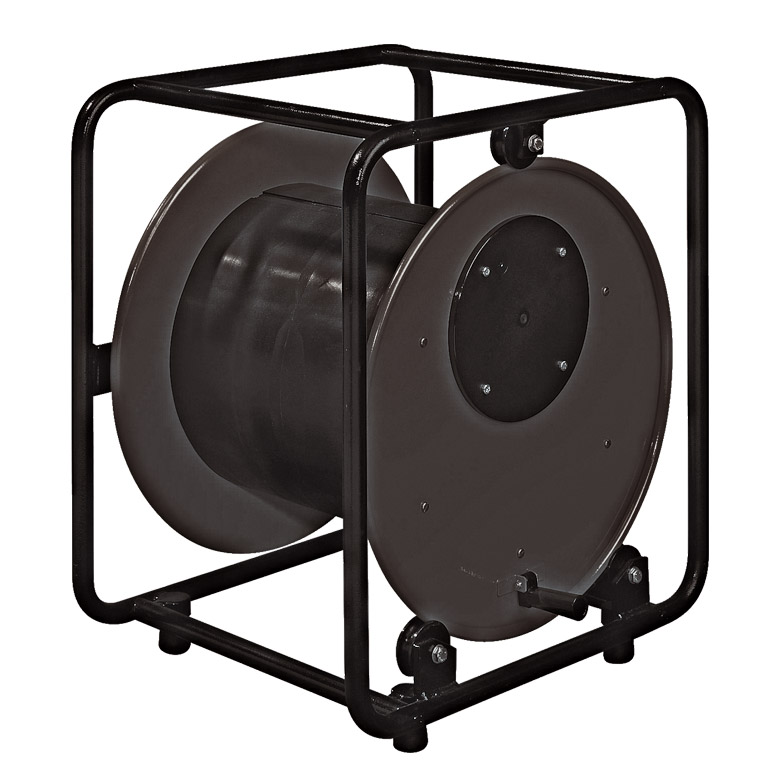

CANFORD CABLE DRUM CD4823

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

Product resources

CANFORD CABLE DRUMS - Steel drum, high capacity, stackable

This range of robust cable-drums all have steel drums, with steel tube cage-style frames. All have a friction drum-brake incorporated into the frame to prevent movement in transit. The drums are available with two different styles of side flange - plain or with cable tail supports. The core of the drum on types CD4822 and CD4823 is a solid steel tube with an aperture to allow the cable tail to go into the drum core. On the other types, the core of the drum is formed from a number of steel bars welded between the flanges.

The drums are available with four different styles of side flange - plain, with blanking-plate, with cable tail supports or with cable tail supports plus an additional flange.

‘Plain’ types have a solid steel flange. ‘Blank plate’ versions have a removeable plastic blanking-plate over the hub, which can be punched to accept connectors as required, or removed for access to the inner tail of the cable. ‘Cable tail’ types have an open hub plus four brackets on the flange face to enable the cable tail to be brought out from the hub of the drum at a gentle angle (important for coaxial and essential for fibre cables) and coiled and secured around the brackets. ‘Cable tail flange’ types have cable tail supports plus an additional flange, forming an 80mm wide extra section on the side of the drum to protect the tail.

This series of drums are stackable. Types CD4700, CD4730 and CD4822 use the same size frame and stack with each other. The larger types CD4701, CD4731 and CD4823 use the same size frame and stack with each other.

Heavy-duty wheeled trolleys are available to suit all the drums in this series, see ‘Canford cable drum trolleys’.

CodeModelFlangeHubHubFlange styleWeight
diameterdiameterwidth
35-5061CD4700460mm280mm250mmPlain17.90kg
35-5062CD4701460mm280mm450mmPlain19.20kg
35-5063CD4822460mm320mm336mmBlank plate21.90kg
35-5064CD4823460mm320mm504mmBlank plate24.00kg
35-5065CD4700CTS460mm280mm250mmCable tail support18.10kg
35-5066CD4701CTS460mm280mm450mmCable tail support19.40kg
35-5067CD4822CTS460mm320mm336mmCable tail support22.10kg
35-5068CD4823CTS460mm320mm504mmCable tail support24.20kg
35-5069CD4730CTF460mm280mm340mmCable tail flange18.20kg
35-5070CD4731CTF460mm280mm510mmCable tail flange21.10kg
CodeCapacities6.5mm cable12.5mm cable15.9mm cable
(tight pack)(HST, SDV-L)(FSM12, PSF1/9)(FSJ8, FSM24)
35-5061CD4700550m153m79m
35-5062CD47011012m282m152m
35-5063CD4822604m150m125m
35-5064CD4823919m234m188m
35-5065CD4700CTS550m153m79m
35-5066CD4701CTS1012m282m152m
35-5067CD4822CTS604m150m125m
35-5068CD4823CTS919m234m188m
35-5069CD4730CTF759m210m112m
35-5070CD4731CTF1146m315m175m
