Description
MICROPHONE CLAMPS AND ELASTIC SUSPENSIONS

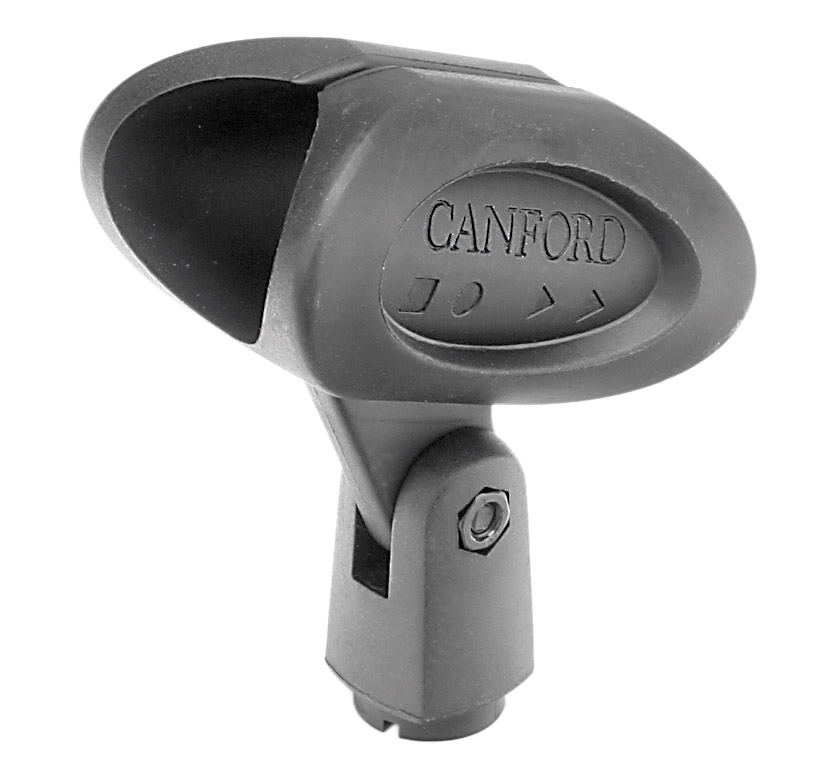

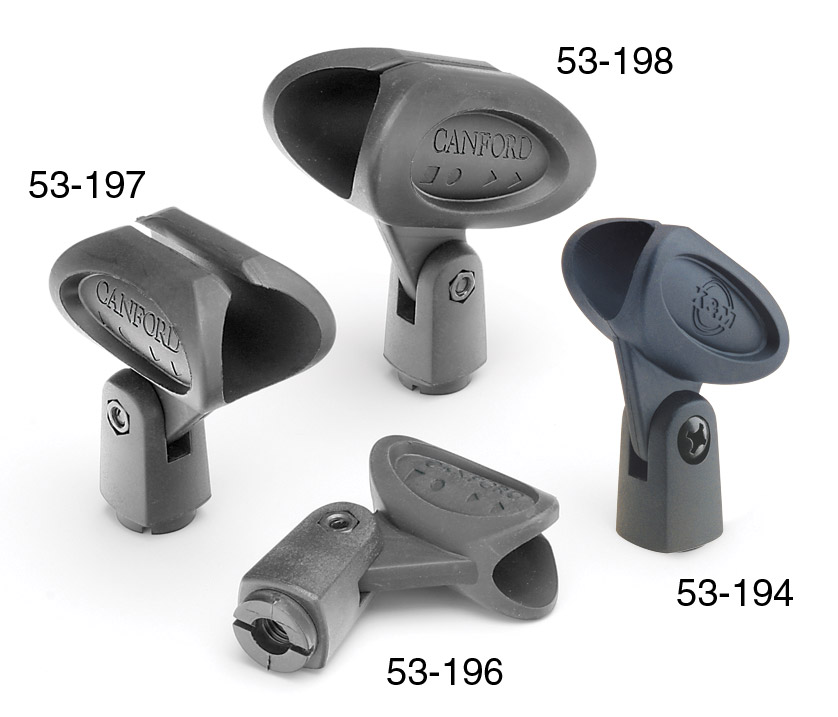

Flexible type
High quality, virtually unbreakable flexible plastic cradle, with friction tilt swivel, available in a range of four sizes to suit virtually all microphones. The cradle will accept both straight and tapered body microphones, including radiomics. Standard 3/8" mounting thread.
Flexible type, with lever swivel clamp
High quality, virtually unbreakable flexible nylon cradle, with lever clamp tilt swivel, available in two styles. Standard 3/8” mounting thread.
|
Type | Microphone body | Diameter range |
|---|
|
53-206 | Tapered | 21mm-28mm |
|
53-207 | Straight | 19mm-24mm |
Spring loaded type
Rigid black plastic construction with swivel mounting and spring loaded clamp. Accepts microphones with body diameter from 13mm to 28mm. Standard 3/8" mounting thread.
Tapered type
Black plastic construction with swivel mounting. Accepts most tapered body microphones, unsuitable for straight body microphones. Standard 3/8" mounting thread.
AKG flexible type
High quality, virtually unbreakable flexible nylon cradle, with friction tilt swivel, in three sizes. Standard 3/8" mounting thread.
|
Type | Microphone body | Diameter range |
|---|
|
SA60 | Straight | 19mm–27mm |
|
SA61 | Tapered | 23mm–28mm |
|
SA63 | Tapered | 30mm–37mm |
Beyerdynamic flexible type
High quality, virtually unbreakable flexible nylon cradle, with friction tilt swivel, in three sizes. Standard 3/8" mounting thread.
|
Type | Microphone body | Diameter range |
|---|
|
MKV9 | Straight/tapered | 19mm–21mm |
|
MKV8 | Straight/tapered | 22mm–32mm |
|
MKV11 | Straight/tapered | 32mm–42mm |
Elastic suspensions
Flexible mountings to reduce transmission of noise to microphones, available in a number of different styles, all in black finish.
|
Type | Diameter range | Notes |
|---|
|
EA19/25 | 19mm–25mm | Simple suspension, use with MKV11 (supplied) |
|
EA86 | 19mm–25mm | Simple suspension, with ‘hot shoe’ adapter for use on video cameras and 1/4" / 3/8"thread for mic stand. |
|
AT8410a | 18mm–28mm | Suitable for both cylindrical and tapered body mics as design incorporates spring loaded clamp. 5/8" thread, order 53-217 thread adapter if required for use with 3/8" thread stands. |
|
EA37 | | Elastic suspension designed for the Beyerdynamic microphones MC834, MC740, MC742 and digital microphone MCD100. Two strong elastic loops support an aluminium sleeve into which the Microphone fits. In normal use the EA37 will reduce mechanical coupling by up to 15dB effectively eliminating noise transmission from stand mounting-points and handling-noise when in use with a boom-arm. |
Hanging Mic Mounts
The MAV800 Microphone hanging-adaptor allows microphones to be suspended from their connecting cable. Can be used with any microphone accessory product with a female 3/8 inch thread. Can support microphones weighing up to 0.5 kg.
Drum adapter
The MKV87 is an exceptionally strong microphone clamp designed specifically to secure a microphone to the rim of a drum. The double-spring design exerts a high clamping force to the mounting points. It will find other applications where a secure removable fixing is required. A 3/8 inch thread and locking-ring are fitted to attach standard microphone mount accessories.
Miniature Mic Clips
The MKV5/k is a label/tie clip for mics with body diameters 6-7mm.
