20-023 CANFORD MICROPHONE SPLITTER 1 channel, 3 way

each (ex. VAT) 1+
Price £ 116.40

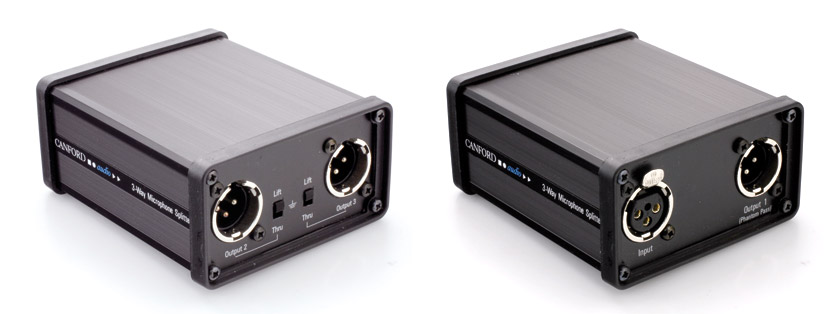

CANFORD MICROPHONE SPLITTER 1 channel, 3 way

Description

Product resources

MICROPHONE SPLITTERS 3-way

These enable microphone feeds to be split to feed three destinations. Output 1, normally used as the main mixer feed, will pass phantom power to the microphone. XLR 3-pin connectors are used, female for input, male for output. Input impedance is 200 ohms, output impedance also 200 ohms each output, all balanced. Both Output 2 and Output 3 have ground lift switches. A high quality single primary, triple secondary transformer is used, frequency response is ±0.5dB 20Hz-20kHz.

Dimensions: 107 × 93 × 50mm. Weight: 0.4kg.

Manufactured by Canford.

Multichannel 3-way splitters can be produced to order against specific client requirements.
