PARALLEL BOXES

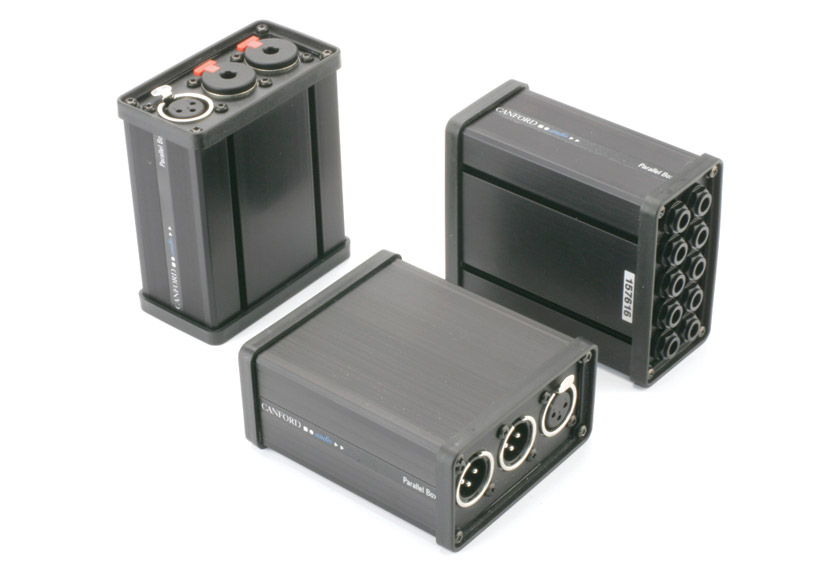

A range of interconnection boxes, with simple wired connections, offered at an attractive price in a variety of combinations. All are housed in our robust standard extruded box, and are fitted with protective ABS bezels.
'Multi' types interface common stereo connections, with parallel connections between one 3.5mm 3-pole jack and one 6.35mm A-gauge 3-pole jack, both wired stereo, and two 6.35mm A-gauge 2-pole jack and two RCA (phono) mono connectors (wired left and right). This unit facilitates breakout from stereo cables to separate left and right connectors, as well as conversion between connection types, for example, RCA(phono) to 3-pole (stereo) jack. The 'Multi' is available in two versions – one circuit and two circuit. The two circuit version has two independently wired stereo sets of connectors in one box.
Dimensions: 107 × 93 × 50mm.
|
| No of | | |
|---|
|
Type | circuits | Connectors | Applications |
|---|
|
2F1M2 | 2 | (1 XLR female +2 XLR male) x2 | Stereo mixer output split |
|
F1M5 | 1 | 1 XLR female, 5 XLR male | Mixer output split to tape, |
|
| | | machines, etc |
|
F1J5 | 1 | 1 XLR female, 5 Neutrik jack | Headphone split |
|
| | (A and B gauge) | |
|
J6 | 1 | 6 Neutrik jack (A and B gauge) | Headphone split |
|
J10 | 1 | 10 A-gauge 3-pole jack | Headphone split |
|
MULTI | 1 | 1 3.5mm 3-pole jack (wired stereo), | Paralleling, breakout, |
|
| | 1 A-gauge 3-pole jack (wired stereo), | connector interfacing |
|
| | 2 A-gauge 2-pole jack (left and right), | |
|
| | 2 RCA(phono)(left and right) | |
|
MULTI | 2 | As Multi 1 circuit, but two sets of | Paralleling, breakout, |
|
| | connectors in one box | connector interfacing |
