SQN PORTABLE MIXERS
SQN portable mixers are designed to provide the necessary functions when using professional microphones for location recording. Full brochures available on request.
SQN-4S_mini
A four-input stereo miniature mixer. Four main channels have XLR mic input, bass-cut switches, where mic powering, input attenuators, channel gain and rotary faders are on channels 1 and 2, whereas channels 3 and 4 can be switched between line level and mic level with reduced gain and attenuation. Channels 1 and 2 can also matrix MS into AB stereo. An aux monitor input is also provided. The output section has a master fader, peak or VU meter (which can also show battery level), switchable limiter, internally adjustable tone inject, balanced main outputs on 5-pin XLR, with second balanced and unbalanced outputs on the same multiway connector as aux monitor return (for single cable connection to recorder/camcorder), and third output, unbalanced on 3.5mm jack. Headphone monitoring (A or B gauge jack, adjustable level) is switchable between mixer output and aux input, with MS matrixing available for monitoring MS recordings in AB stereo mode. Built-in slate microphone, LED meter illumination and pre-fade listening on channel 4.
Powered by 6 AA alkaline batteries giving more than 10 hours continuous use, with four pole DC input (5–18V DC). All this is packed into a rugged compact housing and supplied complete with webbing shoulder-strap.
SQN-5S series II

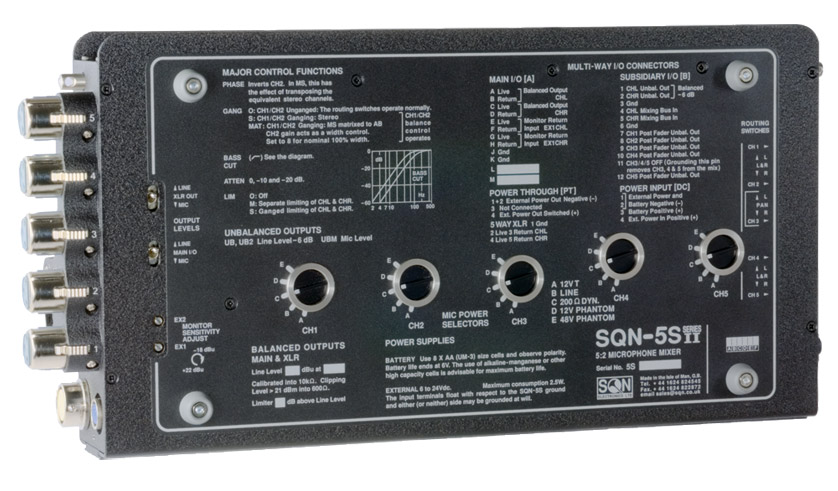

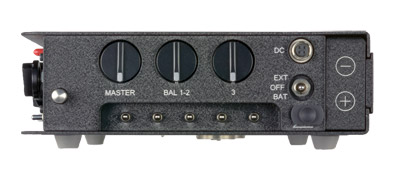

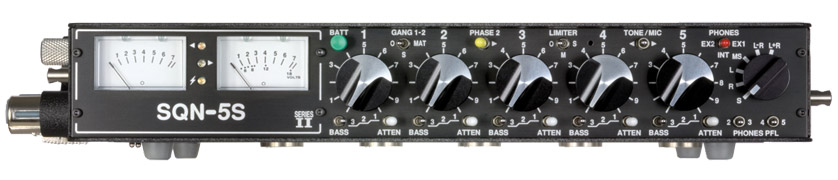

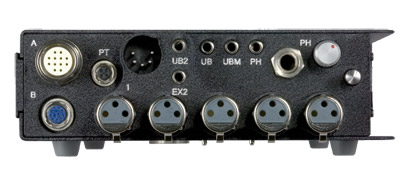

A five-input stereo miniature mixer in a tough, compact, aluminium housing. Five channels have XLR electronically-balanced mic/line input, 4-way mic powering, input attenuator, bass-cut switch and rotary fader. All channels (except 3) can be routed to their respective left, right or both centre (ch1 and 2, 4 and 5). Additionally channels 1 and 2 can be ganged for a stereo or M-S microphone (with or without decoding to A-B) and channel 2 has a phase-reversal switch. Channel 3 can be routed left, right or to a pan control. Balanced monitor returns and mix-bus inputs are also provided on multipin I/O connectors A and B respectively. The output has a master gain fader, PPM or VU meters with battery level indication, switchable twin-mono or stereo limiter with peak indicators, internally adjustable tone-inject with selectable left-channel interrupt. Main outputs are on both XLR and multipin A, each separately-switchable mic/line (Mic and line signals are separately transformer-balanced and floating. Multipin I/O connector A is shared with the monitor return inputs for single-cable connection to recorder etc.). Subsidiary I/O connector B provides unbalanced stereo outputs of –10dBu and allows all five channels to be extracted in pre- or post-fader mode. Headphone monitoring (A or B-gauge jack, adjustable level) has 6-way rotary selector for stereo, R, L, M-S (decoded), L-R and L+R, and pre-fade listening is selectable for channels 2, 3, 4 and 5 as well as mixer/aux selection. A slate-microphone is built-in, actuated by front-panel switch, and meters have LED illumination. The right channel meter has a suppressed-zero battery voltage scale, selected by a front panel push putton.
Powered by 8 AA size alkaline batteries giving more than 10 hours continuous use, with multi-function four-pole DC input (6–24V), providing battery charging and external powering, and “pass-through” powering with auto-reset fuse to feed an accessory connector (and hence powering radio-mic receivers etc. through mixer on/off switch). The mixer is supplied complete with webbing shoulder-strap and mating multipin connectors.
Accessories
|
SQN-SS | Spare shoulder strap for all models |
|
SQN-4MWB | Waterproof padded carrying bag for SQN-4S mini and accessories |
|
SQN-5WB | Waterproof padded carrying bag for SQN-5S series II and accessories |
|
SQN-SLC | Black cowhide carrying-case for SQN-4S mini or SQN-5S series II |
|
SQN-MLC | Black cowhide carrying-case for SQN-2S or SQN-3M |
|
SQN-4AP | Unpadded accessory pouch for attachment to SQN-3WB or SQN-4WB bag |
|
SQN-BLT | 3m loom to interface SQN-2S, SQN-5S or SQN-4S series IV/IVe with Sony Betacam. |
|
SQN-BCT | Coiled loom (3.5/6.5m) to interface SQN-2S, SQN-5S or SQN-4S series IV/IVe with Sony Betacam. |
|
SQN-PWB | Short coiled cable to feed SQN-5S or SQN-4S Series IV/IVe to 3.5mm stereo minijack |
Technical Specifications:
|
| SQN-4S mini | SQN-5S II |
|---|
|
Frequency response: | 20–20,000Hz +0/–1dB | 20–20,000Hz +0/–1dB |
|
Noise: | –130dB(A) 200 ohm | –130dBu (A), 200 ohm |
|
Max output level: | +20dBm | +20dBm |
|
Power consumption: |
|
Unpowered mics: | 1.26W quiescent | 1.56W quiescent |
|
Maximum: | 2.5W | 2.5W |
|
Dimensions (w x d x h): | 210x120x44 mm | 297x161x47 mm |
|
Weight (excluding batteries): | 1.1 kg | 2.1 kg |
|
|
