SIFAM KNOBS
Collet knobs
The collet knob design features a nut tightening chuck which tightens onto all pot shafts, with or without flats. Moulded in black nylon with satin-matt finish, this well known range of knobs offers various finishing and accessory options. Sifam’s range is very extensive, but the types usually relevant to the pro-audio industry are stocked. The various caps and accessories all push fit onto the basic knob. Stock types are with white line on body, and with or without radial white or black line on cap.
|
Type | Diameter | Height | Line | Wing | Shaft diameter | Fixing torque |
|---|
|
S111-004 | 11.5mm | 13.5mm | Yes | No | 4mm | 3cm.kg |
|
S150-250 | 15.5mm | 13.5mm | No | No | 0.25 inch | 8cm.kg |
|
S151-004 | 15.5mm | 13.5mm | Yes | No | 4mm | 8cm.kg |
|
S151-006 | 15.5mm | 13.5mm | Yes | No | 6mm | 15cm.kg |
|
S151-250 | 15.5mm | 13.5mm | Yes | No | 0.25 inch | 15cm.kg |
|
S211-006 | 21.5mm | 17.0mm | Yes | No | 6mm | 15cm.kg |
Caps
Available in various colours, and with white or black line, spot or plain with neither.
|
Knob | Plain Cover | Cover with line |
|---|
|
S111 | C110 | C111 |
|

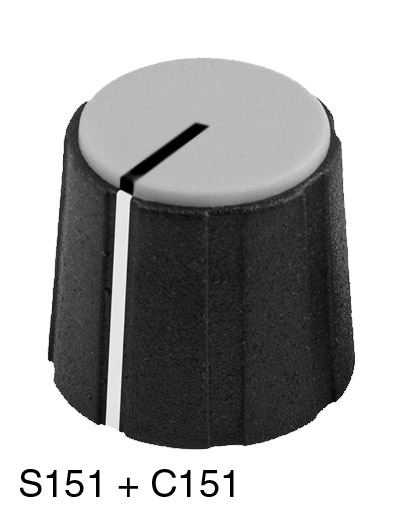

S150/S151/K150/W151 | C150 | C151 |
|
S210/SW211 | C210 | C211 |
Nut covers (“skirts”)
Available in black in two sizes – N111 and N151, to suit collet knobs S111 and S151 respectively. Type S211 knobs have a large enough base to accommodate a nut recess. Depth of N111 3.5mm, N151 4.0mm; diameters 14.0mm and 18.5mm respectively.
Pointers
Available in black in two sizes - P110 and P150, to suit collet knobs S111 and S151 respectively. Fit into base of knob, with triangular pointer.
Dials
Stock type D152 suits S151 and is calibrated 1-12 at 30° intervals. Other calibrations and knob sizes to special order.
Tools
Keys for tightening the slotted nuts on collet knobs S111 and S150/S151 are available, types NK11 and NK15 respectively.
Other type variations
All other types in the Sifam range are available, subject to minimum orders of 100 pieces for collet knobs, 1000 pieces for push-on knobs,and 100 pieces for accessories.
