48-469 CANARE BCP-C7FA BNC Male cable, Canare L-7CFB (pack of 100)

per pack (ex. VAT) 1+ 5+
Price £ 646.00 625.00
Special order product. Order cancellations may incur charges
CANARE BCP-C7FA BNC Male cable, Canare L-7CFB (pack of 100)

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

CANARE BNC CONNECTORS, MALE CABLE TYPES - HDTV

Canare BNC connectors are true 75 ohm types, with impedance-matched performance characteristics, suitable for HDTV, SDI (serial digital) and analogue video. BCP-C types fully meet the requirements of the SMPTE424M HDTV specification, and pass DC to 1.5GHz, with >26dB return loss (1.1VSWR). All Canare BNC connectors will mate mechanically with 50 ohm BNC’s.

Canare crimp tool TC-1 (stock code 55-841) should be used, with appropriate jaw set (see ‘Canare crimp tools’).

Male cable types

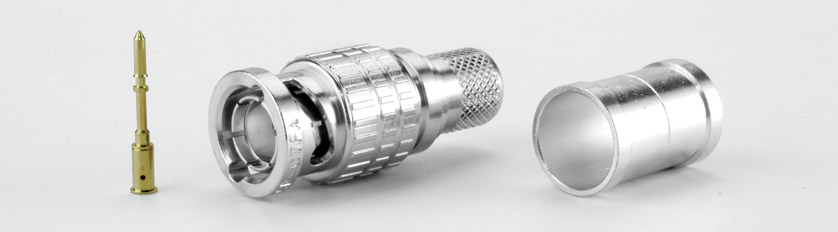

These crimp connectors have an elongated body for better finger grip, and a gold-plated centre pin that snap locks into place. A beryllium-copper outer contact retains its shape exceptionally well, to provide reliable mating. Bodies are nickel plated, and the long crimp ferrule provides for extra cable pull-strength. Silicon rubber strain-relief bushes are also available – see ‘Strain relief bushes, Canare’.
