CANARE BNC CONNECTORS - Female PCB types - HDTV
These high-performance, precision 75 ohm types, are available in a variety of mounting options and PCB orientations, and are suitable for HDTV applications (SMPTE424M).
They have an extremely low return loss, greater than 26dB, and pass DC to 2.5GHz with less than 1.1 VSWR (DC to 1GHz less than 1.2 VSWR). Centre contacts are gold-plated beryllium copper, and the housings mount securely to the PCB with an integrated support tag.

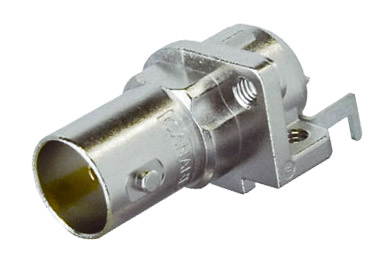

BCJ-BP series
These are designed for secure mounting to panels and have flanges with M2.6 tapped thread holes. They are available in single, double and triple packages for horizontal (right-angle) PCB mounting, or single for vertical (straight pin) PCB mounting. The horizontal types have a further tapped hole to permit secure attachment to the PCB. Suitable fixing screws, M2.6 x 6, are available as an accessory.
BCJ-FP series
These are for front-of-panel fixing, using the supplied hex nut and lock washer on the front of the panel after the connector has been offered up from the rear, and are available with bayonet pins top/bottom or side/side. The bodies are precision machined, except the -01 and -02 types which are diecast.
BCJ-RP series
These are for rear-of-panel fixing, using the supplied hex nut and lock washer on the rear of the panel after the connector has been inserted from the front, and are available with bayonet pins top/bottom or side/side. An integrated bezel gives a clean visual appearance. Type BCJ-RPC and BCJ-RPC/1 have pins side/side and top/bottom respectively when the connectors are positioned with the PCB pins are horizontal.
