Description
100V LINE CONVERTERS

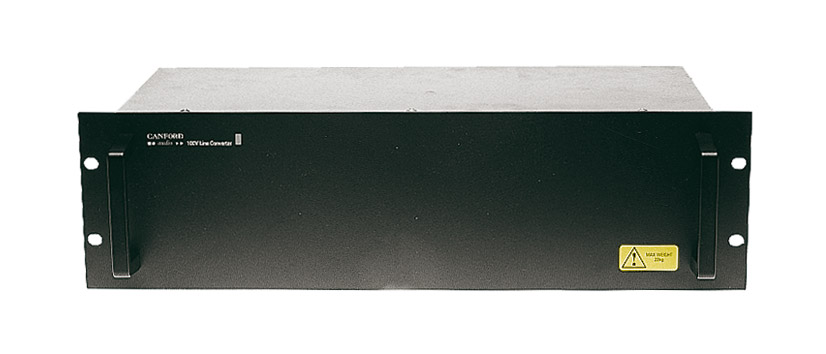

In some applications, such as theatres and high power public address systems, it is desired to drive a 100V line speaker system from a low impedance amplifier. Canford 100V line transformers are ideal for this purpose, and are best placed in an enclosure close to the amplifier, which is usually rackmounted. A substantial black painted steel, 3U rackmounting front panel and zinc plated case has fixing positions for up to 4 MP150 or 3 MP300 transformers, and the rear panel has 8 universal connector holes and blanking plates. Depth is kept to a minimum so that where possible the case can be installed in the rear of the rack, thus offering a space saving. The case is supplied as a flat-pack with all the necessary screws and fixings, but without connectors, wiring or transformers.

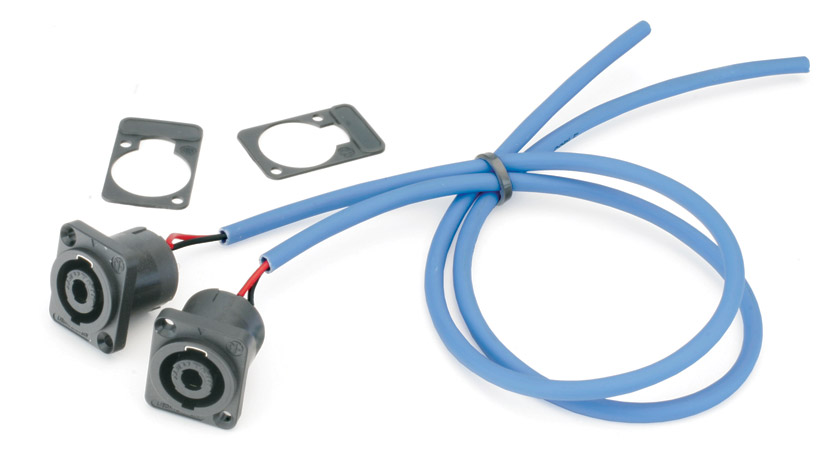

An installation kit containing two Neutrik NL4 connectors and label holders (one input, one output), pre-wired and terminated for use with one MP150/300 transformer is available (1 kit required per transformer, order transformer separately according to type required). Dimensions: 19" rack mounting, 3U high, 206mm deep excluding handles, 246mm deep including handles.
Warning: Maximum weight of this unit (three MP300 transformers fitted) is 22kg.
