20-901 CANFORD IN-LINE RCA (PHONO) ATTENUATOR Phono in/out

each (ex. VAT) 1+
Price £ 14.68
CANFORD IN-LINE RCA (PHONO) ATTENUATOR Phono in/out

Description

RCA (PHONO) IN-LINE ATTENUATORS

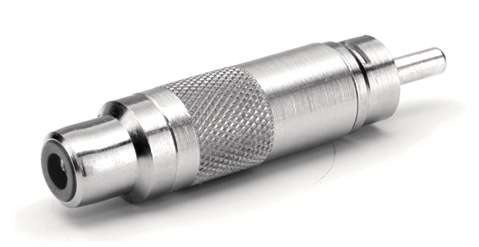

Metal bodied in-line attenuators, with nickel-plated RCA (phono) female input and male output connectors. Useful for interfacing semi-professional line level RCA(phono) outputs to domestic equipment.

Technical Specification:

Source impedanceLoad ImpedanceAttenuation (0.1dB tolerance)
100 ohms100 kohms10.7dB
100 ohms50 kohms11.3dB
100 ohms10 kohms14.7dB
600 ohms10 kohms14.8dB

Maximum signal: Nominally 100V RMS, but limited in practice by safety constraints.
