23-831 CANFORD PLUG-IN POWER SUPPLY 3.6VA, 6 VOLT - EU

each (ex. VAT) 1+ 10+ 50+
Price £ 9.93 9.39 8.87
CLEARANCE Price £ 5.00
This is the last stock Canford can obtain for this item The Clearance price is ONLY applicable to stock in our warehouse that we want to clear. If you order more than we have in stock, we will reduce your order to the quantity we have available at the Clearance price.
CANFORD PLUG-IN POWER SUPPLY 3.6VA, 6 VOLT - EU
CANFORD PLUG-IN POWER SUPPLY 3.6VA, 6 VOLT - EUCANFORD PLUG-IN POWER SUPPLY 3.6VA, 6 VOLT - EU

Description

PLUG-IN POWER SUPPLIES

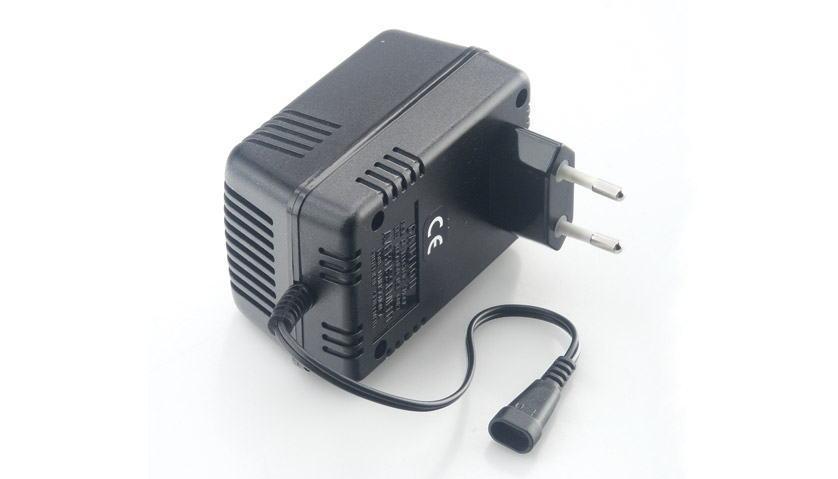

A range of unregulated DC power supplies housed in an impact resistant 3 pin 13 amp plug type shell for UK use, or 2 pin plug type for use in France/Germany. They are available in two sizes, 3.6VA and 7.2VA, and with a variety of voltage outputs, including twin rail supplies.

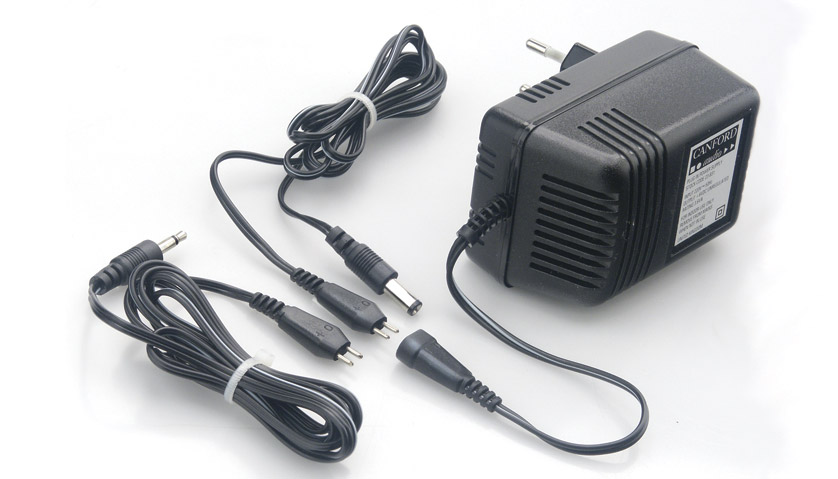

Each single-rail unit is supplied with two output cables, either of which can be connected to the power supply via a polarity-reversible in-line connector. One cable has a 14mm long, 2.1mm co-axial connector (as stock code 44-211), the other a 3.5mm 2-pole jack plug (as stock code 43-242). 23-781 has a 2-metre cable with 2.1mm co-axial connector. Twin rail units have 2 metre 3 core cable supplied unterminated.

3.6VA types have 1000µF smoothing capacitors, 7.2VA types have 2200µF. Units have ‘one-shot’ thermal fuses in the primary winding. 23-781 provides 48V regulated up to 50mA.

Other voltages, higher VA ratings, or with alternative cables can be manufactured to special order subject to a minimum quantity of 10 units.

Type NumberType NumberOutputVAMaximum outputWeight
UK VersionEUR Versionvoltageratingcurrent

23-781 -+482.450mA260g
23-73123-831+63.6600mA260g
23-735 -+93.6400mA260g
23-73223-832+123.6300mA260g
23-734 -+243.6150mA260g
23-763 -±153.6120mA per rail360g
23-742 -+127.2600mA450g
23-744 -+247.2300mA450g
23-773 -±157.2240mA per rail480g
