Canford

www.canford.co.uk

27-802 CANFORD SPARE MICROPHONE CAPSULE For DMH220, DMH225, SMH210, headset, 200 ohms

each (ex. VAT) 1+
Price £ 34.00
CANFORD SPARE MICROPHONE CAPSULE For DMH220, DMH225, SMH210, headset, 200 ohms

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

Product resources

CANFORD HEADPHONE AND HEADSET SPARE PARTS

Spares for DMH205/220/225/285 and SMH210

Ref. onDescription Code

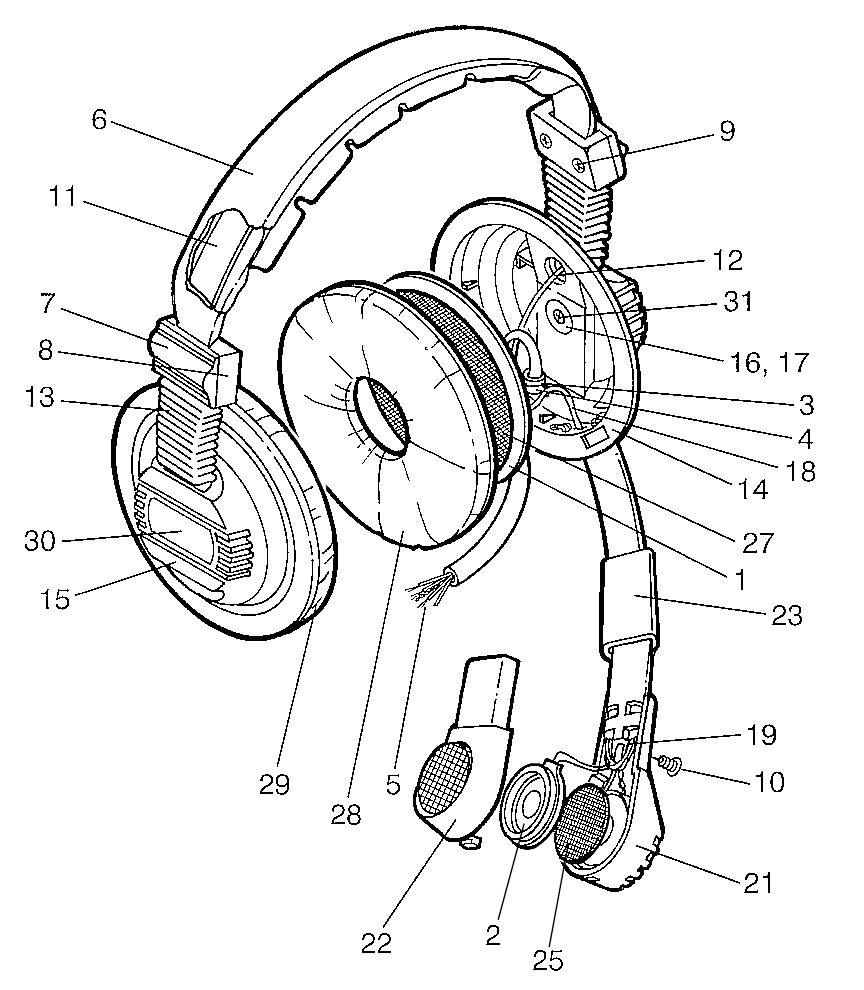

Drawing
 1Ear loudspeaker, 400 ohms for DMH205/220/225, SMH21027-801
 1Ear loudspeaker, 300 ohms (for DMH285 only)27-800
 2Mic capsule, dynamic, 200 ohms27-802
 3Cable bush27-803
 4Cable ring, brass27-804
 5Steel cable, straight (standard)27-805
 6Headband cushion (DMH220, 225, 205, 285)27-806
 6Headband cushion (SMH210)27-837
 7Headband holder – outer27-807
 8Headband holder – inner27-808
 9/31Screw, M2.2 × 9.5 csk27-809
10Screw, M2.2 × 6.5 csk27-810
11Headband, spring steel bow27-811
12Earphone cable27-812
13Bellows27-813
14Housing (left) (SMH210, DMH220, DMH225)27-814
14Housing (left) (DMH205, DMH285)27-838
15Housing (right) (DMH220, DMH225, DMH205, DMH285)27-815
16Sliding part, headband27-816
17Washer27-817
18Mic boom cable27-818
19Wire insert, mic boom27-819
21Mic housing, lower part27-821
22Mic housing, dynamic, upper part27-866
23Mic housing, sleeve27-823
25Mic system, felt washer27-825
27Protective cloth for ear loudspeaker27-827
28Earpad (Left side SMH210, DMH220, DMH225)27-828
29Earpad (Right side DMH220, DMH225, both sides DMH205)27-829
28/29Earpad (both sides DMH285)27-840
28/29Heavy duty earpad (all models)27-839
30Clip insert27-830
–Foam pad holder (SMH210)27-834
–Foam pad (SMH210)27-835
