30-240 CANFORD HSS-M CABLE 1 core, screened, Black

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 0.64 0.51 0.49 0.47 0.43
CANFORD HSS-M CABLE 1 core, screened, Black
CANFORD HSS-M CABLE 1 core, screened, BlackCANFORD HSS-M CABLE 1 core, screened, Black

Description

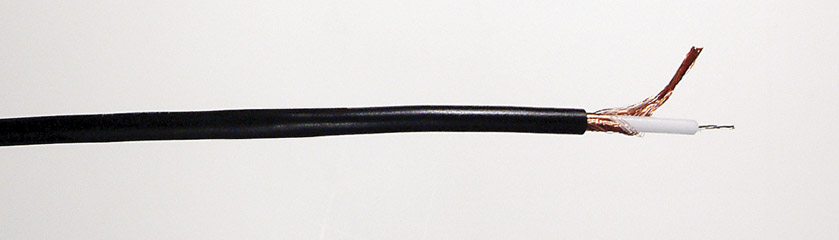

HSS-M - MINIATURE HELICAL SCREENED SINGLE CABLE

Single core low capacitance helical screened cable for general unbalanced wiring applications. Overall diameter of 4.5mm makes it suitable for use with virtually all phono (RCA) connectors and jack plugs. A double version, HSS-M2, in figure-of-eight format, is specifically for use with stereo unbalanced equipment, and is printed along one edge for identification.

Technical Specification:

Conductor:7/0.20mm (0.22mm²) tinned copper wire
Insulation:Foamed polyethylene, OD 2.8mm
Screen:66/0.1mm bare copper, helically wound
Overall jacket:Soft semi-matt PVC, OD 4.5mm ±0.25mm (HSS-M),
4.5mm ±0.3mm × 9.2mm ±0.5mm (HSS-M2)
Max. conductor resistance:9.0 ohms/100m
Capacitance:58pF/m
Reel length:100m and 500m
Cut lengths:Available in any multiple of 1 metre
