31-049 CANFORD KHT-HD CABLE (BBC PSN2/3)

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 0.79 0.63 0.61 0.60 0.57
CANFORD KHT-HD CABLE (BBC PSN2/3)
CANFORD KHT-HD CABLE (BBC PSN2/3)CANFORD KHT-HD CABLE (BBC PSN2/3)

Description

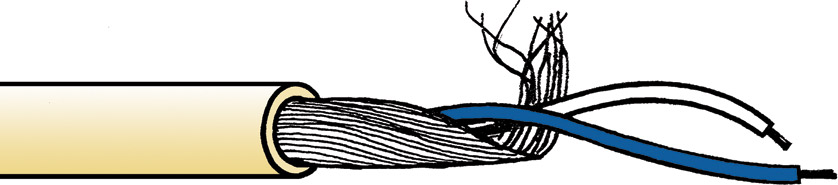

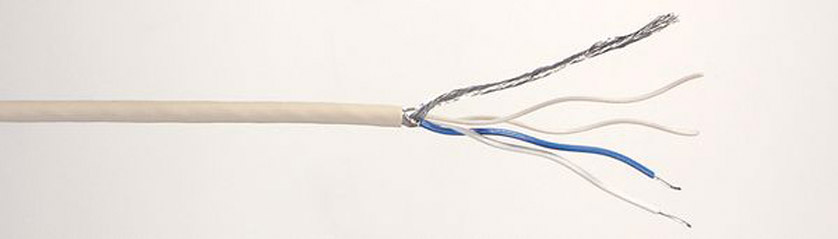

KHT-HD - HELICAL SCREENED SOLID CONDUCTOR TWIN CABLE (BBC PSN2/3)

Twisted pair helical screened cable to a BBC specification. Suitable for permanent wiring in trunking and between equipment. Suitable for termination onto Krone frames but the screen must be made off to a single wire.

Technical Specification:

BBC specification:PSN2/3M
Voltage rating:750V dc
Conductors:1/0.5mm (0.2mm²)
Current rating:1A
Insulation:PVC blue, white
Screen:40/0.2mm closely lapped
Overall jacket:PVC, 4.0mm OD, cream
Conductor resistance:92.2 ohms/km
Capacitance (nom):86pF/m
Weight:2.9kg/100m
Reel length:500m
Cut lengths:Available in any multiple of 1 metre
