31-162 CANFORD KHT CABLE 1 pair, Blue/red (BBC PSN2/4)

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 0.63 0.51 0.49 0.47 0.43
CANFORD KHT CABLE 1 pair, Blue/red (BBC PSN2/4)
CANFORD KHT CABLE 1 pair, Blue/red (BBC PSN2/4)CANFORD KHT CABLE 1 pair, Blue/red (BBC PSN2/4)

Description

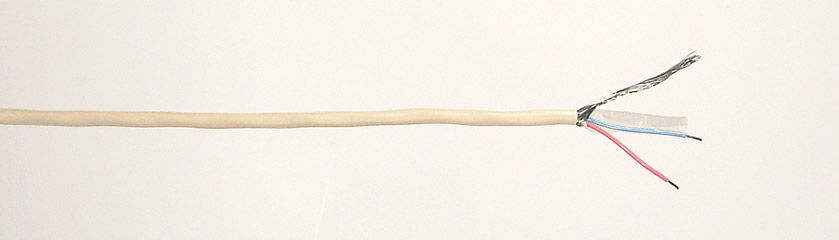

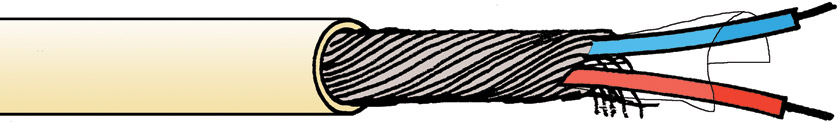

KHT - HELICAL SCREENED SOLID CONDUCTOR TWIN CABLE (BBC PSN2/4)

Twisted pair helical screened cable to BBC specification. Suitable for permanent wiring within racks and equipment. Suitable for termination onto Krone frames but the screen must be made off to a single wire.

Technical Specification:

BBC specification:PSF2/4M
Voltage rating:750kV dc
Conductors:1/0.5mm (0.2mm²)
Current rating:1A
Insulation:PVC, blue and red
Screen:32/0.15mm closely lapped
Overall jacket:PVC, 3.0mm OD, cream
Conductor resistance:92.2 ohms/km
Capacitance (nom):140pF/m
Weight:1.4kg/100m
Reel length:100m, 500m
Cut lengths:Available in any multiple of 1 metre
