Description

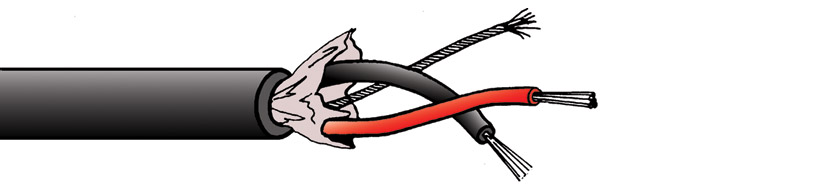

FST-M - FOIL SCREENED STRANDED CONDUCTOR TWIN CABLE Miniature
This new 2010 version of the Canford FST-M cable is designed to be suitable for both digital and analogue audio signals, the ‘universal’ solution for both installed and deployable applications. Wire insulation is polypropylene, which shrinks back minimally during soldering (considerably less than PVC or polyethylene). An impedance of 100 ohms has been proven to be suitable for AES/EBU digital audio signals as well as analogue microphone and line level signals.
It is a smaller version of the classic Canford FST, for use where space is at a premium. As with the original, the foil is bonded to the outer jacket for easy stripping.
Technical Specification:
|
Conductors: | 25/0.1mm (0.20mm sq.) bare copper |
|
Insulation: | Foamed polypropylene, 1.1mm O.D., red, black |
|
Construction: | Two cores twisted together with 25/0.1mm bare copper drain wire |
|
Screen: | Aluminium/polyester foil tape, bonded to jacket |
|
Jacket: | PVC, 3.0mm O.D., black, printed with metre markings |
|
Impedance: | 100 ohms |
|
Capacitance: | 85pF/m core to core, 160pF/m core to core+screen |
|
Conductor resistance: | 101 ohms/km |
|
Weight: | 1.39kg/100m |
|
Reel length: | 500 metres |
|
Cut lengths: | Available in any multiple of 1 metre |
