Description

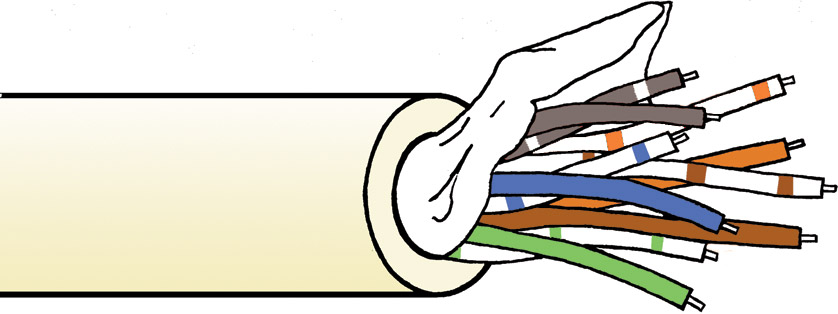

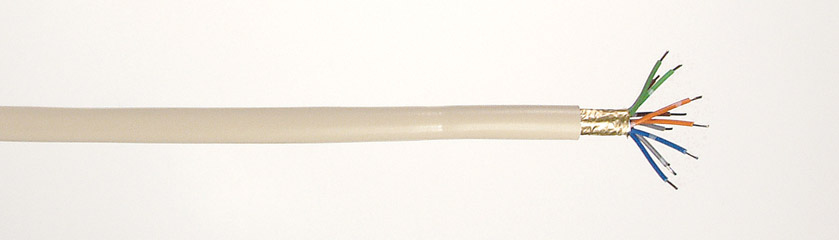

KSM SERIES - OVERALL FOIL SCREENED SOLID CONDUCTOR MULTIPAIR CABLE (BBC PSN types)
These cables, to a BBC specification, have single solid conductors, twisted in pairs and overall foil screens with drain wire. They are suitable for permanent installations where screens are terminated on a bus arrangement, such as jackfields and IDC type blocks. They have a relatively low impedance (they were designed before digital audio was invented) and are not suitable for digital audio circuits.
Technical Specification:
|
BBC specification: | PSN10/3M (KSM5), PSN20/4M (KSM10), PSN32/1M (KSM16), PSN40/2M (KSM20), PSN50/3M (KSM25) |
|
Construction: | Twisted to form pairs, than laid-up with overall Melinex tape |
|
Voltage rating: | 750V dc |
|
Conductors: | 1/0.5mm (0.2mm²) tinned copper wire |
|
Current rating: | 1A |
|
Insulation: | PVC. For colours see technical data section |
|
Screen: | Aluminium or aluminium/polyester tape |
|
Drain wire: | 1/0.5, (0.22mm²) tinned copper |
|
Overall jacket: | PVC, cream |
|
Overall diameter: | 6.3mm (KSM5), 7.6mm (KSM10), 8.4mm (KSM16), 10.2mm (KSM20), 10.8mm (KSM25) |
|
Conductor resistance: | 98 ohms/km |
|
Weight: | 4.7kg/100m (KSM5), 8.4kg/100m (KSM10), 11.2kg/100m (BSM16), 15.1kg/100m (KSM20), 17.0kg/100m (KSM25) |
|
Reel length: | 100m, 500m |
|
Cut lengths: | Available in any multiple of 1 metre |
