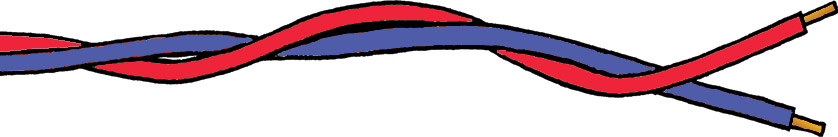

32-226 JUMPER WIRE JW2 Blue/red (BBC PUN2/2) (reel of 100m)

per reel (ex. VAT) 1+ 5+ 10+ 25+
Price £ 18.13 17.31 16.49 15.86
JUMPER WIRE JW2 Blue/red (BBC PUN2/2) (reel of 100m)

Description

JW AND KJ SERIES - UNSCREENED TWISTED PAIR SOLID CONDUCTOR JUMPER WIRE

JW series

Solid conductor 1 and 2 core jumper wires specifically for use with Krone, and other IDC systems. JW1 is to BBC PUN1/1M specification, JW2 to BBC PUN2/2M.

Note: Due to very low demand, most items in this series are now discontinued, with the JWH series offered as replacements. Existing stocks are offered at reduced prices to clear.

Technical Specification:

Conductors:1/0.5mm (0.2mm²) tinned copper wire
Insulation:PVC, OD 0.95mm, various colours
Lay-up:Cores twisted together (2 core types)
Reel length:100 metres (sold as full 100 metre reels only)
