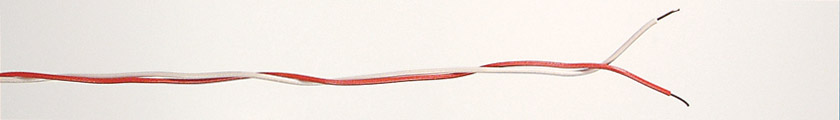

32-429 JUMPER WIRE JWH2 White/red (BT CW1423) (reel of 200m)

per reel (ex. VAT) 1+ 5+ 10+ 25+
Price £ 36.25 34.62 32.99 31.72
JUMPER WIRE JWH2 White/red (BT CW1423) (reel of 200m)

Image may be provided for illustrative purposes only, please consult the product description for exact details.

JUMPER WIRE JWH2 White/red (BT CW1423) (reel of 200m)JUMPER WIRE JWH2 White/red (BT CW1423) (reel of 200m)

Description

JWH SERIES - UNSCREENED TWISTED PAIR SOLID CONDUCTOR JUMPER WIRE

Solid conductor 1, 2 and 3-core jumper wires specifically for use with Krone and other IDC systems. Three-core version is specifically for use with Krone ABS blocks.

CW1423 type

These have a hardened grade of PVC for their outer insulation, specifically designed for use in larger wiring frames, where the wires may be subject to more mechanical stress, and where a harder jacket is desirable to reduce the risk of chafing. All versions conform to BT CW1423 specification (which directly supercedes CW1257, which specified the now obsolete “irradiated cross-linked PVC”).

Technical Specification:

Conductors:1/0.5mm (0.2mm sq.) tinned copper wire
Insulation:OD 1.0mm, various colours
Lay-up:Cores twisted together (2 and 3-core types)
Reel length:100 metres (sold as full 100 metre reels only)
