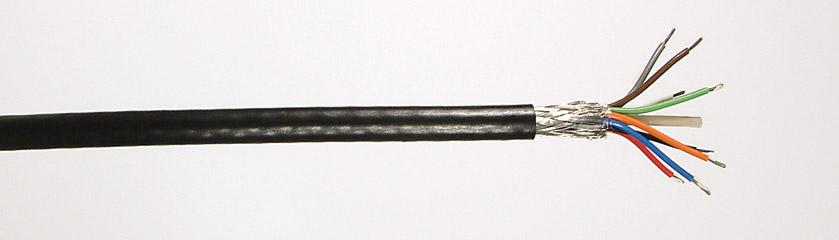

34-108 CANFORD BSU CABLE 8 core (BBC PSF8/2)

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 1.63 1.30 1.25 1.20 1.11
CANFORD BSU CABLE 8 core (BBC PSF8/2)

Image may be provided for illustrative purposes only, please consult the product description for exact details.

CANFORD BSU CABLE 8 core (BBC PSF8/2)CANFORD BSU CABLE 8 core (BBC PSF8/2)

Description

Product resources

BSU - BRAID SCREENED STRANDED CONDUCTOR MULTICORE CABLE (not paired)

This flexible unpaired screened multicore cable, to a BBC specification, is similar to DEF STAN 7-2-*C series but with a different colour code system, based on the BBC colour codes (see technical data section at the back of the catalogue).

Technical Specification:

BBC specification:PSF8/2M (BSU8)
Voltage rating:750V DC
Conductors:7/0.2mm (0.22mm sq.) tinned copper wire
Current rating:1A per conductor
Insulation:PVC. For colour codes see technical data section
Screen:90% cover 0.15mm
Overall jacket:PVC, black
Overall diameter:6.2mm (BSU8)
Conductor resistance:92 ohms/km
Weight:6.7kg/100m (BSU8)
Reel length:100m, 500m
Cut lengths:Available in any multiple of 1 metre
