34-210 CANFORD GPH CABLE 2 pair

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 0.27 0.21 0.21 0.20 0.19
CLEARANCE Price £ 0.08
The Clearance price is ONLY applicable to stock in our warehouse that we want to clear. If you order more than we have in stock, we will reduce your order to the quantity we have available at the Clearance price.
CANFORD GPH CABLE 2 pair
CANFORD GPH CABLE 2 pairCANFORD GPH CABLE 2 pair

Description

GPH - GENERAL PURPOSE HEADPHONE CABLE

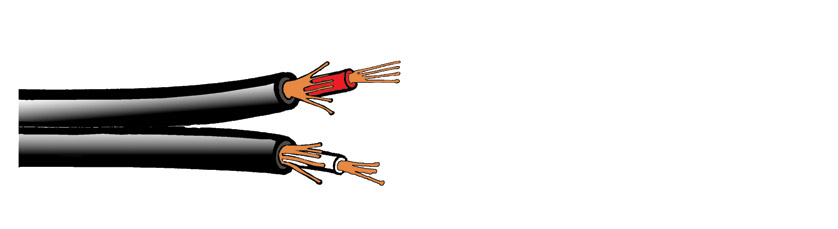

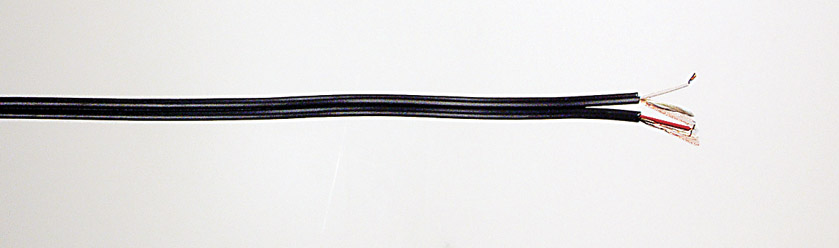

General purpose, miniature, stereo headphone cable, intended for re-wiring Walkman-style and other lightweight headphones. Figure-of-8 construction can be split down the centre. The conductors in each part of the cable are laid up in a concentric construction to minimise the size.

Technical Specification:

Conductor 1:7/0.1mm (0.055mm²) plain copper wire
Insulation:PVC, OD 0.85mm
Conductor 2:7/0.1mm (0.055mm²) plain copper wire, laid parallel with core
Insulation:PVC, OD 1.8mm ±0.10mm, black
Overall lay-up:Figure-of-8 profile, 1.80mm × 3.80mm
Weight:0.5kg/100m
Reel lengths:100m, 2000m
Cut lengths:Available in any multiple of 1 metre
