35-5036 CANFORD CABLE DRUM CDR380CTS

each (ex. VAT) 1+ 10+
Price £ 144.30 140.00

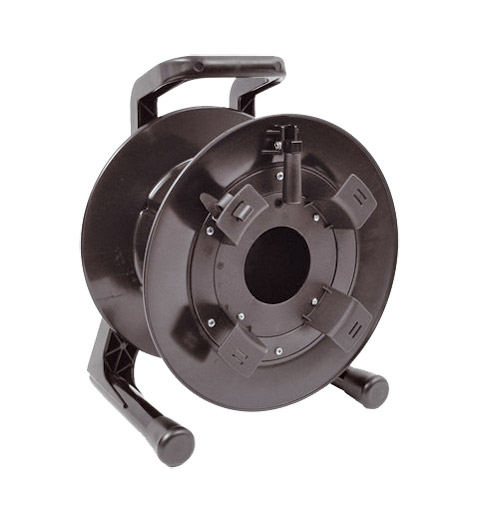

CANFORD CABLE DRUM CDR380CTS

Description

Product resources

CANFORD CABLE DRUMS - Rubber drum

This range of extremely durable cable-drums all have drums made from synthetic rubber, with moulded high-strength plastic frames. All have a friction drum-brake incorporated into the frame to prevent movement in transit. The drums are available with three different styles of side flange - with blanking-plate, with cable tail supports or with hinged access door.

‘Blank plate’ versions have a removeable plastic blanking-plate over the hub, which can be punched to accept connectors as required, or removed for access to the inner tail of the cable. ‘Cable tail’ types have an open hub plus four brackets on the flange face to enable the cable tail to be brought out from the hub of the drum at a gentle angle (important for coaxial and essential for fibre cables) and coiled and secured around the brackets. ‘Hinged access door’ types have a latching door, enabling cable tails to be safely stored inside during un-reeling, re-reeling, storage and transport.

Models CDR235 and CDR310 have a fixed winding-handle on the drum flange, CDR380 and CDR450 have a folding handle. Drums and frames are black. This range of rubber cable drums carries a five year warranty.

CodeModelFlangeHubHubFlangeWeight
diam.(mm)diam.(mm)width(mm)style(kg)
35-5031CDR235235mm135mm110mmBlank plate1.20
35-5032CDR310310mm170mm112mmBlank plate2.20
35-5033CDR380380mm236mm166mmBlank plate4.60
35-5034CDR450445mm295mm177mmBlank plate6.90

35-5035CDR310CTS310mm170mm112mmCable tail2.20
35-5036CDR380CTS380mm236mm166mmCable tail4.60
35-5037CDR450CTS445mm295mm177mmCable tail6.70

35-5038CDR310HAD310mm170mm112mmHinged door2.20
35-5039CDR380HAD380mm236mm166mmHinged door4.60
35-5040CDR450HAD445mm295mm177mmHinged door6.70
CodeCapacities6.5mm cable12.5mm cable15.9mm cable
(tight pack)(HST, SDV-L)(FSM12, PSF1/9)(FSJ8, FSM24)
35-5031CDR23560m22m9m
35-5032CDR310118m26m24m
35-5033CDR380255m56m45m
35-5034CDR450329m91m59m

35-5035CDR310CTS118m26m24m
35-5036CDR380CTS255m56m45m
35-5037CDR450CTS329m91m59m

35-5038CDR310HAD118m26m24m
35-5039CDR380HAD255m56m45m
35-5040CDR450HAD329m91m59m
