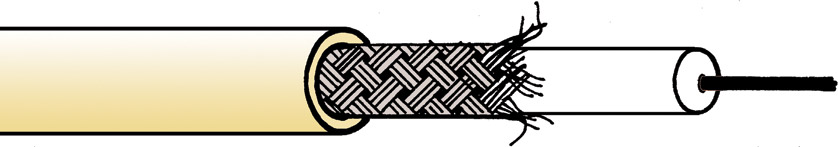

VCM-M - VIDEO COAX CABLE Miniature (BBC PSF1/7)
Miniature 75 ohm coaxial cable to a BBC specification for video applications offering a slightly smaller diameter than Canford VCM.
Technical Specification:
|
Cable size group: | E |
|
BBC specification: | PSF1/7M |
|
Centre conductor: | 1/0.42mm cadmium copper alloy |
|
Dielectric: | Cellular polypropylene, 1.87mm diam. |
|
Braid: | 95% cover 0.1mm |
|
Jacket: | PVC, cream, 2.95mm OD |
|
Impedance: | 75 ohms |
|
Capacitance (nom): | 60pF/m |
|
Attenuation: | 0.9dB/100m (0.1MHz), 6.06dB/100m (10MHz) |
|
Velocity ratio: | 0.76 (2MHz), 0.78 (10MHz) |
|
Weight: | 1.4kg/100m |
|
Reel length: | 100m, 500m |
|
Cut lengths: | Available in any multiple of 1 metre |
Note: Cadmium copper alloy is no longer available, so this cable can no longer be manufactured. A good alternative is SDV-M (36-646) which offers improved electrical permance and has a smaller overall diameter. If size is not critical, then SDV (36-509) is recommended.
