36-587 CANFORD SDV-F-HD CABLE Violet

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 3.72 2.98 2.87 2.76 2.53
CANFORD SDV-F-HD CABLE Violet

Description

Product resources

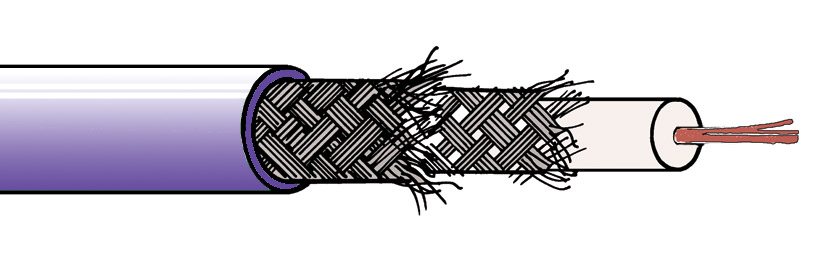

SDV-F-HD - HDTV, SERIAL DIGITAL AND ANALOGUE VIDEO CABLE Flexible, heavy duty

A cable designed specifically for deployable applications where HDTV or SDI signals are to be carried. The construction is optimised for extremely high flexibility, and the polyurethane jacket provides resistance to abrasion and durability. This is the HDTV cable that handles like the softest of microphone cables - the rigger’s dream!

Technical Specification:

Cable size group:Not in Canford scheme. Suitable heavy duty BNC, designed specifically for this cable, is Neutrik NBNC75B-WU13 (stock code 48-617)
Inner conductor:7/0.36mm (0.71mm sq.) plain copper
Dielectric:Foamed polyethylene, 4.8mm OD
Screen 1:Tinned copper braid
Screen 2:Tinned copper braid
Jacket:PUR, extra flexible, 7.2mm OD, violet
Impedance:75 ohms +/-1%
Capacitance:56pF/m nominal
Return loss:Greater than 26dB, 50-300MHz
Greater than 22dB, 300-3000MHz
Greater than 18dB, 3000-3500MHz
Attenuation:MHz1510135180270
dB/100m0.501.501.909.309.5813.28

3607201000150030004500
15.3420.8725.832.0049.0062.20
Weight:8.0kg/100m
Reel length:500 metres
Cut lengths:Available in any multiple of 1 metre
