36-606 CANFORD SDM-LFH CABLE 6 core

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 6.15 4.92 4.74 4.55 4.18
CANFORD SDM-LFH CABLE 6 core

Description

Product resources

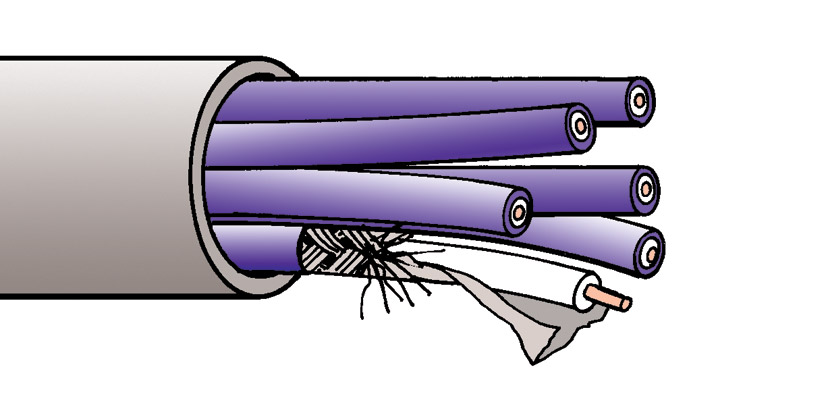

SDM-LFH - SERIAL DIGITAL AND ANALOGUE VIDEO MULTICORE CABLE

A multicore version of SDV-LFH serial digital and analogue video cable. Cores are exactly as the standard cable, and are individually numbered.

Suitable crimp BNC’s and strain relief bushes are available - see index.

Technical Specification:

Cable size group:X
Inner conductor:0.66mm plain copper
Dielectric:Foam polyolefin, 2.80mm O.D.
Screen 1:Aluminium/polyester/aluminium tape longitudinally applied
Screen 2:0.122mm tinned copper braid, optical coverage 95%
Individual jackets:Low smoke zero halogen material, OD 4.6 +/-0.3mm, violet, numbered
Impedance:75 +/-1% ohms
Capacitance:56pF/m nominal
Return loss:35dB nom. 47-450MHz
40dB nom. 450-900MHz
Attenuation:MHz1101351802703605707801000
dB/100m1.023.411.112.815.818.525.730.732.6
Lay up:Individually numbered cores laid up with fillers
Overall sheath:Low smoke zero halogen material, OD 15.7mm, grey
Weight:25.0kg/100m
Reel length:500 metres
Cut lengths:Available in any multiple of 1 metre
