36-656 CANFORD SDV-M-LFH CABLE Turquoise

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 0.74 0.59 0.57 0.55 0.51
CANFORD SDV-M-LFH CABLE Turquoise

Description

Product resources

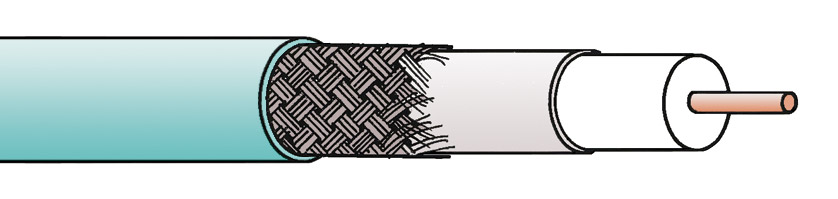

SDV-M-LFH - HDTV AND SERIAL DIGITAL VIDEO CABLE Miniature, low fire hazard

Miniature coaxial 75 ohm cable specifically for serial digital video signals, with low-smoke, zero-halogen material outer jacket.

Technical Specifications:

Cable size group:W
Inner conductor:0.41mm plain copper
Dielectric:Foam polyethylene, 1.9mm O.D.
Screen 1:Aluminium/polyester/aluminium tape, longitudinally applied
Screen 2:Tinned copper braid, O.D. 2.5mm
Construction:Coaxial cable
Jacket:Low smoke zero halogen material, turquoise, O.D. 3.1mm
Impedance:75 +/- 1%
Capacitance:56pF/m nominal
Return loss:26dB nom. 50-300 MHz
22dB nom. 300-3000 MHz
18dB nom. 3000-3500 MHz
15dB nom. 3500-5000 MHz
Attenuation:MHz1510135180270
dB/100m1.804.406.1020.8024.0029.41

3607201000150030004500
33.9647.0155.4070.40115.00146.37
Weight:1.4kg/100m
Reel length:500m
Cut lengths:Available in any multiple of 1 metre
